How to Expand RAID 5 Array Partitions in 2022 [New]
RAID (Redundant Array of Inexpensive Disks or Independent Disks) is a data storage virtualization technology that allows the same data to be saved in multiple places on different physical hard disks. If you're looking for a reliable way to expand your RAID 5 disk with unallocated space or a new disk, you may be able to do so using this technology.
On this page, you will learn:
- 1. What is RAID 5?
- 2. Why do you need to increase RAID 5 size?
- 3. How to Expand RAID 5 drive on your own?
To expand a RAID 5 array on a Windows Server computer, follow the content navigation and find the right method to suit your needs. This may involve using the built-in Disk Management tool, or if that's not possible, using a third-party software solution like Acronis True Image or Qiling Backup.
- Method 1. Extend/Expand RAID 5 Array With Unallocated Space
- Method 2. Add Disk to Upgrade HardRAID 5 Capacity
- Method 3. Adding a New Disk to Expand SoftRAID 5
RAID 5 Overview: What Is RAID 5

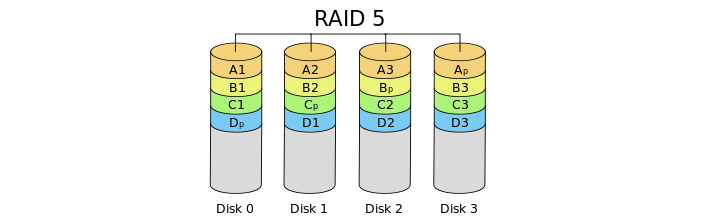

RAID 5 is a redundant array of independent disks configuration that uses disk striping with parity, providing data redundancy through parity instead of mirroring. It requires a minimum of three hard disk drives or more, making it a secure configuration.
When data is written to a RAID 5 drive, the system calculates parity and writes it into the drive. This allows the system to rebuild a failed drive using parity data without losing any files.
HardRAID 5 VS SoftRAID 5, What's The Differences
While both HardRaid 5 and SoftRaid 5 are types of RAID drives, they have different methods of extending their capacity. HardRaid 5 requires physical hardware changes to increase its size, whereas SoftRaid 5 can be expanded virtually without the need for additional hardware. Understanding the differences between these two types of RAID drives is crucial for effective management and maintenance.
| Comparison | HardRAID 5 | SoftRAID 5 |
|---|---|---|
| Consist | RAID (Redundant Array of Independent Disks) cards or controllers are used to manage multiple disks working together to increase overall system performance, particularly for server users. |
|
| Pros |
|
|
| Cons |
|
|
Why Need to Expand/Extend RAID 5
Case 1: You can expand your RAID 5 configuration on the ML 350 G5 Server without losing data or affecting the OS. To do this, you would need to replace one of the existing disks with a larger one, then use the RAID controller to rebalance the data across all disks. This process is known as "adding a hot spare" or "expanding a RAID 5 volume". The server will automatically redistribute the data to take advantage of the extra capacity, allowing you to use the additional space. This method does not require a complete rebuild of the RAID set, and your data and OS should remain intact.
Case 2: To add a 4th drive to the existing RAID 5 array on your Compaq ML370G2 with a 5i controller, you'll need to follow these steps: First, ensure the system is powered off. Then, connect the new drive to the 5i controller. Next, enter the RAID configuration utility (usually by pressing a key during boot-up, such as F2 or Ctrl+M). Within the utility, look for the option to add a new drive to the existing RAID 5 array.
If a RAID 5 disk is running low on space, it can significantly impact server speed and computer performance, and may even prevent data from being saved. In such cases, consider expanding the RAID by adding more disks to the array, or migrating the data to a new, larger RAID setup. This will help maintain optimal performance and ensure continued data storage capabilities.
To maximize the performance of server computers, the direct fix is to increase the RAID size, allowing for more disk space on RAID 5.
How to Expand RAID 5 Array, Adding Capacity (3 Ways)
To extend RAID 5 drives to a larger capacity, the method for expanding HardRAID 5 and SoftRAID 5 drives differ.
Here are the 3 reliable methods to help you effectively upgrade RAID 5 drives to a larger capacity with ease:
- Way 1. Expand HardRAID 5 or SoftRAID 5 Disk with Unallocated Space
- Way 2. Add Disk to Upgrade HardRAID 5 Capacity
- Way 3. Adding a New Disk to Expand SoftRAID 5
Editor's Recommendation:
- In the Disk Management tool, check if the disk is listed as online or offline, and if it's marked as a RAID 5 disk. If it's offline, try to bring it online by right-clicking on the disk and selecting "Online".
- If you have unallocated space on RAID 5 disks, you can extend it directly using Method 1.
- If you're running out of space, you can either extend HardRaid 5 by adding a new disk or add a new disk to expand SoftRAID 5, depending on your setup.
Method 1. Extend/Expand RAID 5 Array With Unallocated Space
This command extends a RAID 5 disk partition by adding unallocated space, supporting both HardRAID and SoftRAID configurations.
When you have sufficient unallocated space on RAID 5 disks, you can expand the RAID 5 space using professional partition manager software.
Qiling Partition Master Server can resize or move partitions to free up space on a hard drive, making it useful for tasks such as deleting a large partition to free up space.
To effectively extend RAID 5 by adding more space or extend the RAID 5 disk space, you can follow these steps: First, you need to add a new disk to the existing RAID 5 array, which will be used as a hot spare. Then, you can expand the RAID 5 array by adding the new disk, which will increase the total disk space available.
Step 1. Click on the RAID 5 volume, select "Resize/Move".
Step 2. Drag the RAID 5 right handle to add unallocated space into the volume and click "Proceed" to confirm.
Besides RAID 5 expansion, this tool can also be used to repair RAID-5 volumes when you are unable to access or visit RAID 5 disks.
Method 2. Add Disk to Upgrade HardRAID 5 Capacity
To upgrade the HardRAID 5 capacity on servers, a new disk is added and configured for RAID 5, allowing for increased storage capacity and redundancy.
If you used a Server controller to configure RAID 5 when your disks are out of space with no unallocated space left, you'll need to add new disks to upgrade the RAID 5 capacity.
Notice:
If a larger disk is added to a group of disks, it will automatically be resized to match the capacity of the other disks.
When adding a larger disk to a system with smaller disks, the total usable space may be limited by the smallest disk size, resulting in wasted space on the larger disk. For instance, if you have three 80 GB disks and add a 160 GB disk, you can only use 80 GB of the 160 GB disk, leaving the remaining 80 GB unusable.
To ensure your data on RAID 5 is safely backed up, it's crucial to use reliable server backup software in advance. Qiling Backup Server is a suitable option that allows you to easily back up everything on your RAID 5 disk volumes with just a few simple clicks.
Here, we take Dell and Intel as examples to show you how to upgrade RAID 5 disks' capacity by adding a new drive. If your Server vendors are not Dell, please contact your vendors for help.
Upgrade RAID 5 capacity in Dell PowerEdge R940 server:
Step 1. Insert drives into the server via a RAID controller and boot up the server.
Step 2. Press F2 to enter the System Setup menu.
Step 3. Select "Device Settings" once you are in the system setup menu.
Step 4. Select "Device Settings" once you are in the system setup menu.
Step 5. Select the RAID Controller > Main Menu > Physical Disk Management
If all the physical disks are displaying as "Ready", click "Back" to return to the main menu.
Step 6. Select "Configuration Management" > Select "Create Virtual Disk".

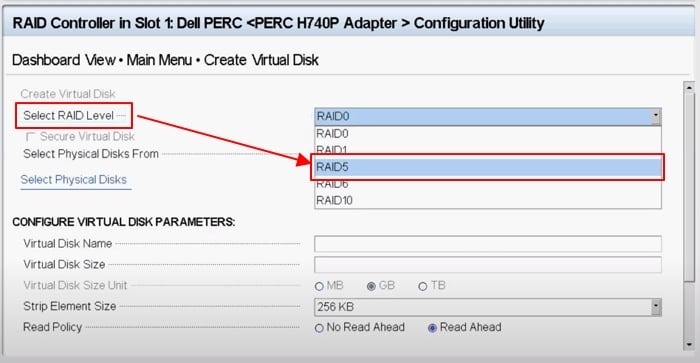

Step 7. At the Select RAID Level section, select "RAID 5" under the drop-down menu.

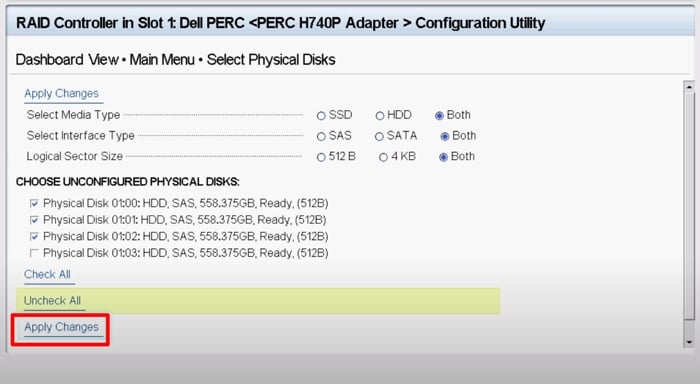

Step 8. Click "Select Physical Disks" > Then check to select all the physical disks under the CHOOSE UNCONFIGURED PHYSICAL DISKS section.
Step 9. Then select "Apply Changes" to complete the operation.
Click "OK" to continue.
Step 10. To create a virtual disk, select "Create Virtual Disk" and confirm the action, clicking "Yes" to proceed. This will erase all existing data on the drives, so make sure to back up your data beforehand.
Step 11. You'll be prompted that the operation has been performed successfully, click "OK" to confirm.
After the disk copy operation, you can reboot the Server machine and then enter Disk Management to see if the RAID 5 Array partition has been extended.
Step 12. Now, open Qiling Backup, click "Recovery" and select to restore files from the backup image to your new RAID disks.
Method 3. Adding a New Disk to Expand SoftRAID 5
To address the issue of all RAID 5 dynamic disks running out of disk space, you can add a new disk to extend the existing RAID 5 configuration. This will allow for more storage capacity and potentially alleviate the disk space constraints.
Note: Before proceeding, it's crucial to backup all data from your current RAID 5 setup to an external storage drive to ensure your files are safe and can be restored later.
To add an extra drive to extend RAID 5 on Windows Servers, follow these steps: First, ensure the server is powered off and the drives are disconnected. Next, connect the new drive to the server and ensure it is detected by the BIOS.
Step 1. Install the new drive to your server computer via the connection cables.
The new disk must have the same capacity as the other disks.
Step 2. Start the PC and enter Disk Management after installing the new drive.

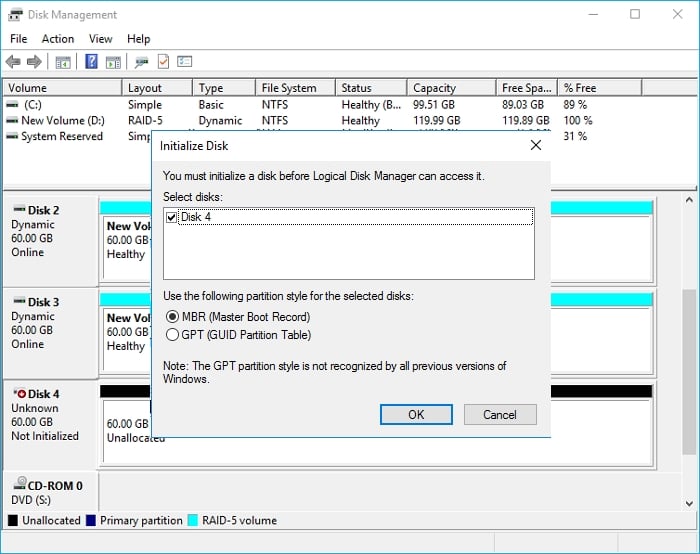

Step 3. After adding a new disk to the RAID, right-click on it and select "Online" to make it accessible. Then, initialize the disk by choosing the same partition style as the original RAID drives.

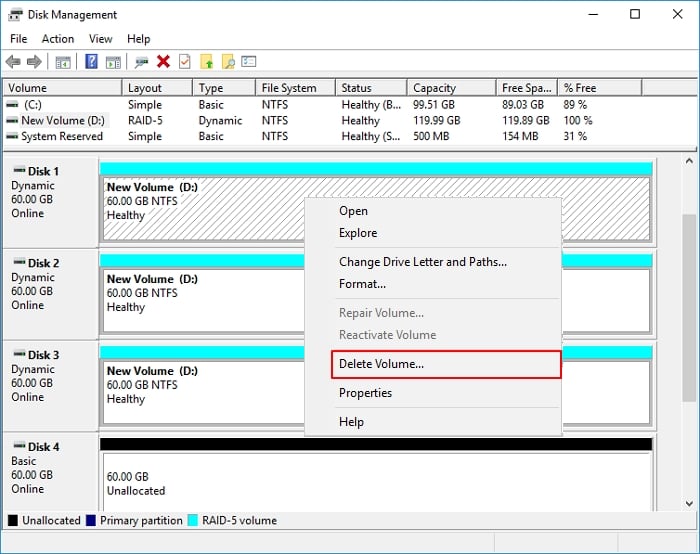

Step 4. To add the new disk into RAID 5, you'll need to delete the old-drive array.
Note that this will cause data loss, therefore, remember to back up all the useful data in advance.

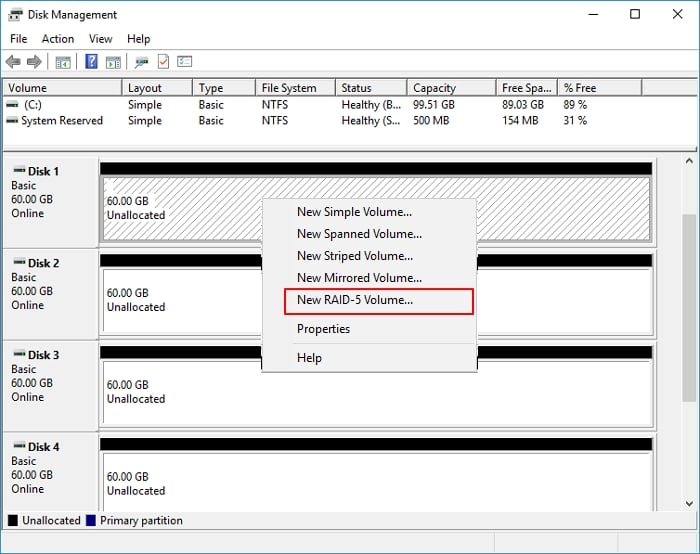

Step 5. Now, you may right-click on the unallocated space to select "New RAID-5 Volume".
Step 6. Select both old and new disks to add to the RAID 5 Array. Click "Next" to continue.
Step 7. To proceed with the setup, assign a new drive letter to the RAID 5 volume and set the file system for the new RAID 5 array, then click "Next" to continue.
Step 8. Click "Finish" to complete the process.
Wait patiently for the disks to resync and format, and eventually, you'll see an extended RAID 5 with the new disk running on your server.
Step 9. Also, don't forget to restore your backup files back to the new RAID 5 disk.
What RAID Level Is The Best? RAID 0, 1, 5 or 10
There is no "best" RAID level, as it depends on the specific needs and priorities of the user. RAID 5 offers a balance between performance and redundancy, while RAID 6 provides an additional layer of protection against disk failures, but at the cost of reduced performance. The key difference between RAID 5 and RAID 6 is that RAID 5 uses a parity stripe across all disks, while RAID 6 uses a double parity stripe, which provides an extra layer of protection against multiple disk failures. However, RAID 6 also requires more disks and has a higher overhead, which can impact performance.

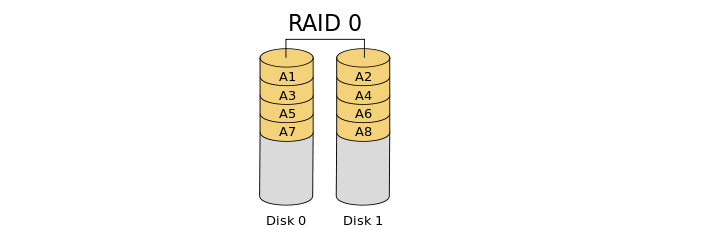

RAID 0 is a data storage method that splits data evenly across two or more disks, increasing performance but offering no redundancy, parity, or fault tolerance.

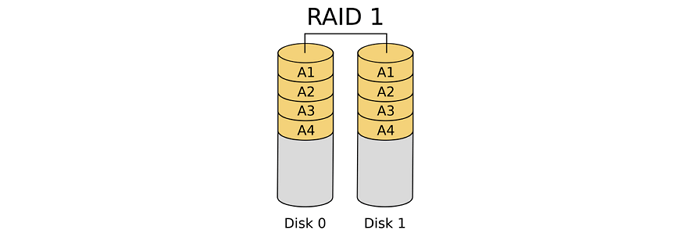

RAID 1, or mirroring, involves creating an exact copy of data on two or more disks, writing two copies of the data simultaneously on separate drives. This setup is often used for small database systems, enterprise servers, and home PCs where basic fault tolerance is desired, providing a cost-effective way to protect against data loss.

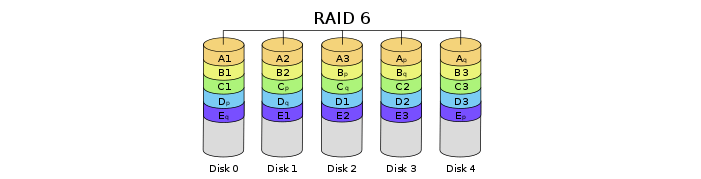

RAID 6 is an extension of RAID 5 that adds an additional parity block, distributing two parity blocks across all member disks using block-level striping. This setup requires a minimum of four hard disk drives and is ideal for large and reliable storage needs, offering protection against data loss in the event of two disk failures.
RAID 5 outperforms RAID 0, 1, and 6 in terms of data reading and writing speed, while also providing robust data security.
People Also Ask about RAID 5
If you're experiencing issues with RAID 5 disk, don't worry - there are quick solutions available. You can check the answers below to resolve common problems.
1. How do I recover data on RAID 5 disk?
When a RAID 5 disk fails, the system can still boot up and automatically rebuild the data, allowing you to recover the data from the remaining disks. This means that you can still recover the data even if one of your RAID 5 disks is no longer functioning. The system will use the data from the remaining disks to rebuild the missing data, allowing you to recover the data from the failed disk.
If you can't access RAID 5 volumes, you can use reliable RAID recovery software to scan and restore all data from the RAID 5 disks, such as Deep Data Recovery.
Then you can follow the steps as shown on this page to re-create RAID 5 on your server computer.
2. How to back up RAID data?
You have two main options to create a backup of your RAID drive data. One option is to manually copy and save data from the RAID disks to an external storage device, ensuring that your data is safely stored elsewhere in case of any issues with the RAID setup.
To backup Windows Server RAID disk data, you can use reliable RAID backup software, such as Qiling Backup Server, which can help you complete the backup process in just a few simple clicks.
3. How to Clone RAID Disk?
To safely clone a RAID to another disk, using a reliable Disk Cloning software is recommended. Qiling Backup, a RAID clone software, supports file-by-file disk cloning and is available in both Windows version and WinPE bootable CD, making it suitable for cloning RAID arrays.
To clone a RAID disk safely, follow these steps: First, ensure you have a compatible cloning software and a target disk with enough space. Next, shut down your system and disconnect any unnecessary cables.
