3TB Hard Drive Only Shows 2TB - How to Break 2TB Limit and Format 3TB HDD Windows 11/10

Q: 3TB drive format Windows 11/10 not working, how to solve?

The user is experiencing issues formatting the extra 700GBs on their 3TB Western Digital hard drive, with Windows unable to format the drive despite trying various troubleshooting steps. The user is seeking assistance to resolve this issue.

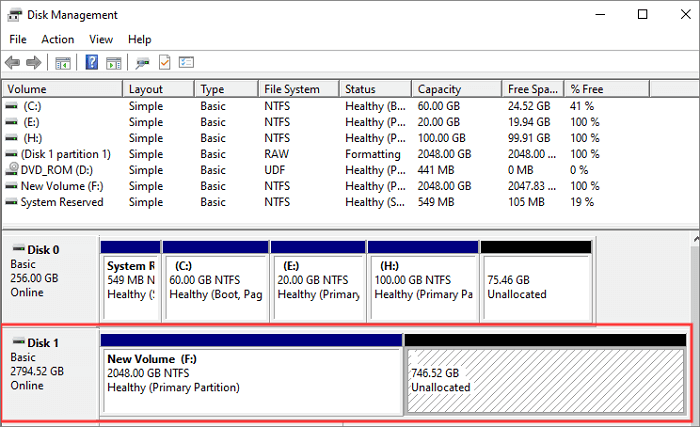

3TB hard drive only shows 2TB or 746GB on Windows 11/10, with the remaining space displayed as unallocated, preventing expansion or new partition creation.

Why Does My 3TB Hard Drive Only Shows 2TB

The issue is likely due to the fact that your 3TB hard drive was initialized with a Master Boot Record (MBR) instead of a GUID Partition Table (GPT), which is required for drives larger than 2TB. This is a common problem with older systems or drives that were not properly configured.

3TB hard drives only use 2TB due to MBR disk limitations, preventing the creation of a new partition with the unallocated space on the 3TB disk. The partition style is MBR, not GPT, which is why this issue occurs.

The main difference between MBR (Master Boot Record) and GPT (GUID Partition Table) disks lies in their partition table structures. MBR disks use a 32-bit address space, limiting the maximum partition size to 2TB, while GPT disks use a 64-bit address space, allowing for much larger partition sizes. This is why a 3TB hard drive may only show 2TB, as the MBR partition table cannot accommodate the larger size, whereas a GPT disk can.

You can utilize the full 3TB storage of a hard drive by converting its Master Boot Record (MBR) to a GUID Partition Table (GPT). This is because Windows can only address the first 2TB of a 3TB MBR hard drive, rendering the excess storage unusable. By converting to GPT, you can format the drive and access the entire 3TB capacity without losing any data.

How to Fix 3TB Hard Drive Only Shows 2TB and Format 3TB Hard Drive on Windows 11/10/8/7

To solve the 3TB hard drive showing as 2TB problem and format a 3TB hard drive on Windows 11/10/8/7, you can convert the MBR disk to GPT disk in three ways, with the first method being the best choice as it doesn't require deleting a partition or data initially. The second and third methods require deleting a partition before the conversion.

1. Convert MBR to GPT Without Losing Data by Using a Partition Manager

We strongly recommend trying to convert MBR to GPT using Qiling Partition Master, a superior disk management tool that can directly convert MBR to GPT without deleting any partition or file.

• Free Download
• Windows 11/10/8/7, 100% Secure

With Qiling partition manager, you can:

• Resize/move partitions, create, format, delete, and merge partitions, such as moving free space from the D drive to the C drive.
• You can copy and clone an entire disk to another, even if the target partition is smaller than the source, using a tool like Clonezilla or Acronis. This process involves creating an image of the source disk and then restoring it to the target disk, effectively duplicating the entire contents of the source disk onto the target disk, even if the target disk is smaller.
• The process of converting a logical partition to primary or primary partition to logical, FAT32 to NTFS partition, and more can be achieved through the use of disk management tools, such as Disk Management in Windows. This involves opening the Disk Management tool, selecting the partition to be converted, and then choosing the desired conversion option from the context menu.
• Upgrading to a Solid-State Drive (SSD) is a great way to breathe new life into your Windows 11 or 10 computer. By migrating your operating system to an SSD, you can enjoy significant speed improvements, including faster boot times, quicker application loading, and enhanced overall performance.

To convert MBR to GPT or vice versa, download the Qiling partition management tool, which allows you to make the conversion with just a few clicks.

Step 1. Download and launch Qiling Partition Master on your Windows computer.

Step 2. To convert a Master Boot Record (MBR) disk to a GUID Partition Table (GPT) disk, select the MBR disk you want to convert, click the "More" button, and then choose the option to convert MBR to GPT.

2. Convert MBR to GPT to Format 3TB HDD in Disk Management

To convert a 3TB hard drive to GPT in Windows, you need to use the Disk Management feature, but only if the disk is empty. If there are files or partitions on the drive, back up all the data first. The Convert to GPT Disk option will be greyed out if the disk is not empty.

Step 1. Right-click on the Windows button, select "Disk Management".

Step 2. The 3TB hard drive shows the wrong capacity when right-clicked, so choose "Delete Volume..." to resolve the issue.

Step 3. When a hard drive shows as unallocated space, right-click the disk and choose "Convert to GPT Disk".

3. Convert 3TB Disk from MBR to GPT Using Diskpart in CMD

To convert an MBR disk to a GPT disk using the Command Prompt, you'll need to delete all partitions and files first, and then run a command to convert the disk type. This process requires backing up your data in advance to avoid losing any important files.

Step 1. Press the Windows key + R, type CMD, and press Enter to open the command prompt.

Step 2. Type diskpart and hit Enter. Type the following commands in order; remember to press Enter after you input each one.

list disk
select disk n Please replace the drive letter "n" in the command with your actual 3TB drive letter. The command should look something like this: `robocopy "C:\Users\YourUsername\Documents" "I:\Users\YourUsername\Documents" /mov /minage:01/01/2022 /maxage:01/01/2022 /movlog:"I:\RoboCopyLog.
clean (clear all partitions on the selected disk)
convert gpt

Step 3. Type Exit when the conversion finished. Now, the 3TB hard drive becomes all unallocated. You can continue to format the 3TB disk and create partitions. Type the following commands and press enter after each one.

create partition primary
assign letter=N The given string has a length of 3. The string "abc" has the letters "a", "b", and "c" which are all different.
format fs=ntfs quick

Step 4. Type exit and press Enter.

Final Verdict

After reading this post, you should now understand why a 3TB hard drive cannot be formatted on Windows 11/10. However, you can bypass the 2TB file system limit by converting the disk to GPT, allowing you to fully utilize the 3TB space. This means you can format the hard drive and make the most of its capacity.

Qiling Partition Master is a user-friendly partitioning tool that allows both beginners and pros to partition large-capacity disks, optimize disk partitions to extend hard drive and computer capability.

• Free Download
• Windows 11/10/8/7, 100% Secure

More 3TB HDD FAQs That You Might Be Interested in

Here are a few questions related to why the hard drive is not showing full capacity and how to format a 3TB HDD on Windows 11/10. If you also have these problems, you can find the methods here.

Does Windows 11/10 support 3TB hard drives?

Windows 11/10 supports large disk capacities, such as 2TB, 3TB, 4TB, and 6TB, which require initialization to GPT or conversion to GPT for larger drives.

Why is my hard drive not showing full capacity?

A hard drive might display the wrong capacity due to factors other than a faulty partition table. The drive's capacity could be misreported for various reasons, including incorrect configuration, outdated firmware, or issues with the drive's internal logic.

• The hard drive driver is out of date.
• The hard drive is format improperly or the formatting process is incomplete.
• A Master Boot Record (MBR) or GUID Partition Table (GPT) header can become corrupted due to accidental insertion and removal of storage devices, such as hard drives or solid-state drives, while the computer is running. This can cause the operating system to fail to boot or display errors during the boot process.
• Errors caused by bad sectors.

How do I format a 3TB hard drive to FAT32?

FAT32 has limitations in terms of partition and file size, with a maximum partition size of 2TB and a single file size limit of 4GB. However, it can support up to 8TB on a 4K sector disk. This restricts its use for larger storage capacities.

If you insist on formatting your 3TB disk to FAT32, you'll need to follow these steps.

• To resize the 3TB hard drive, install and launch Qiling Partition Master, then right-click on the drive and select "Resize/Move".
• To make the partition less than 2TB, drag the partition ends to the desired size. This will reduce the partition size to the new specified amount, allowing it to be created without exceeding the 2TB limit.
• Right-click on unallocated space, and choose "Create" a FAT32 partition.
