Recover Deleted MicroStation DGN Drawings on Windows

Updated on Oct 31, 2026 | by Qiling

Quick Navigation:

Understand the File and Its Dependencies
Find a Backup and Protect the Source
Recover Local Files with Qiling
Check the Recovered Result
Frequently Asked Questions

Accidental deletion can remove a design file while leaving a preview, shortcut, or older export behind. Before running a scan, identify the actual saved file and the physical disk that held it. This guide explains how to recover MicroStation DGN Drawings from Windows storage and check whether the recovered work is usable.

Understand the File and Its Dependencies

A DGN design file can contain models and reference attachments. Recovering the main drawing does not automatically recover every referenced design, raster, or resource.

a DGN design has internal drawing content and can attach external reference drawings or rasters.

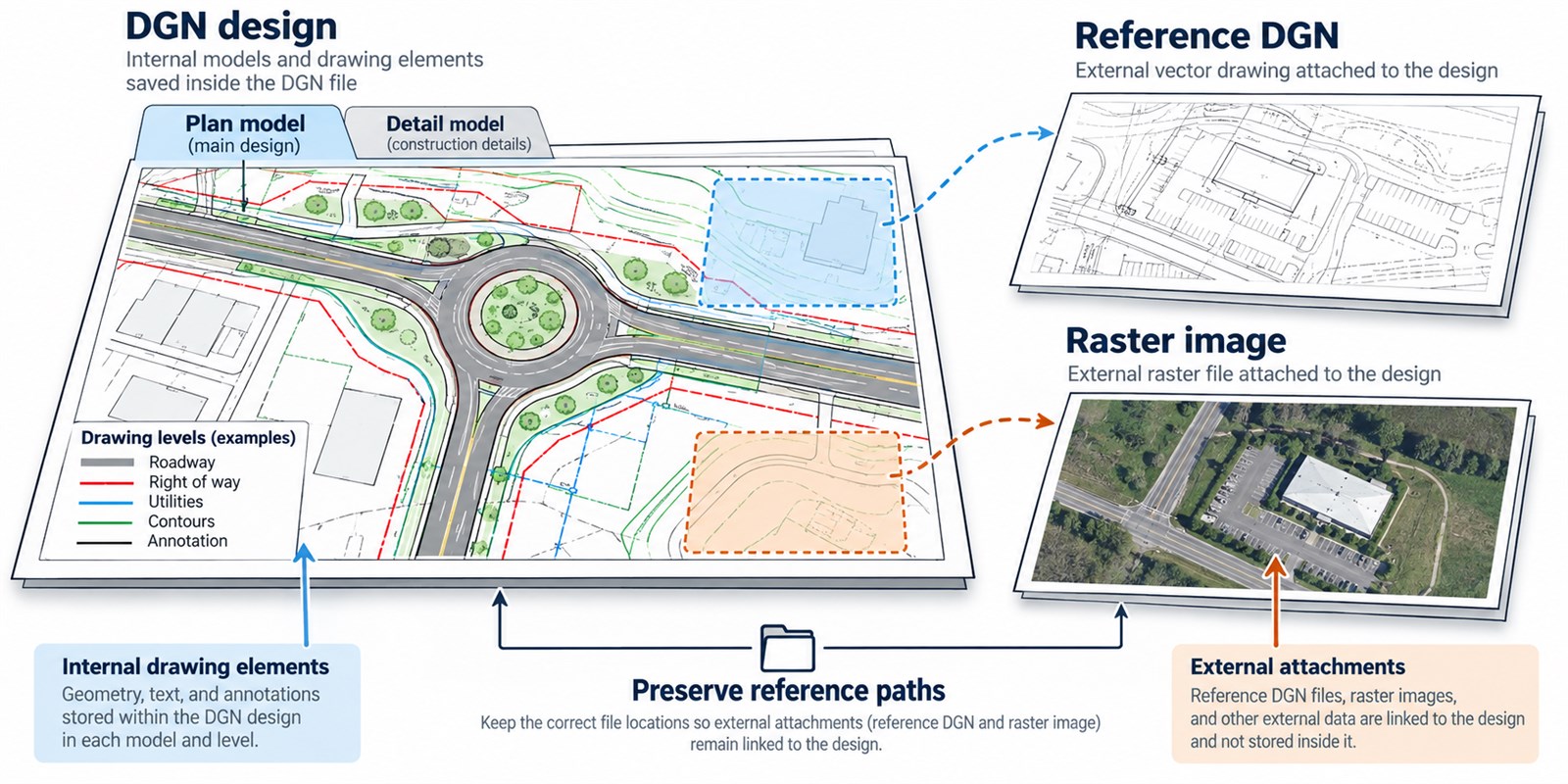

Knowledge illustration: a DGN design has internal drawing content and can attach external reference drawings or rasters. AI-generated conceptual diagram, not a software screenshot.

Record the original folder, application version, expected file size, and last useful revision. Keep a list of referenced files or sequence members where relevant. A visible preview or familiar filename does not prove that editable geometry, metadata, or every frame is intact.

If the file still exists but will not open, preserve it and investigate corruption or compatibility separately. An undelete scan does not automatically repair damaged internal structures or recreate changes that were never saved.

Find a Backup and Protect the Source

Check project worksets, backup copies, managed revisions, Recycle Bin, and reference folders. Keep the original folder layout to make attachment resolution easier.

Check Windows and Application Copies

Open Recycle Bin and compare the original path and deletion date. Check application-managed versions, Windows backups, and the version history of synced folders. When possible, copy a candidate to another physical disk for inspection instead of replacing your only surviving version.

Prepare a Separate Recovery Destination

If no usable backup exists, stop saving, rendering, exporting, or installing software onto the source disk. New writes can overwrite deleted content. SSD TRIM can also make deleted blocks unavailable. Prepare another physical drive with enough space for multiple candidate versions and companion resources.

If the device disconnects repeatedly, makes unusual noises, or reports hardware errors, stop repeated scans and seek specialist assistance. Do not format the source to make it accessible. A local scan cannot recover files that existed only on a remote project server or cloud service.

Recover Local Files with Qiling Deep Data Recovery

Qiling Deep Data Recovery searches Windows-visible local disks and removable storage for lost files. Recovery depends on the remaining file records and data. Do not assume that every specialized design format has a dedicated preview or repair function.

Free Download
Windows 11/10/8/7, 100% Secure

Step 1. Select the Recovery Mode

Run the program from a disk other than the source. Select Fast Scan for recent local deletion, Recycle Bin Scan after emptying the bin, USB/SD Scan for removable storage, or Format Scan after an accidental format. Choose according to the loss event, not the file extension.

Choose the Qiling recovery mode for MicroStation DGN Drawings

Step 2. Select the Source Volume and Click Scan

Identify the volume that contained the original project folder. Check its drive letter and capacity before selecting it, especially if several external disks are connected. Click Scan and allow the scan to complete. Do not select the destination drive merely because it is empty.

Select the original volume and start the Qiling scan

Step 3. Review Versions and Related Files

Review names, folders, extensions, sizes, and dates where available. Select several plausible versions rather than discarding alternatives immediately. Include referenced components, resource folders, or sequence files identified earlier. For files with numbered versions, retain the suffixes.

Review found MicroStation DGN Drawings and companion files

Step 4. Recover to Another Physical Disk

Select the candidates and click Recover. Choose a folder on the prepared destination disk, not another partition of the physical source disk. Wait for the output to finish saving, confirm the files exist, and keep an untouched copy before opening anything in a design application.

Save recovered design files to a separate disk

Check the Recovered Result

Open a duplicate in compatible MicroStation software. Inspect models, levels, units, references, annotations, and plotted views. Resolve missing attachments only on the duplicate.

If validation fails, compare other recovered versions and backups before editing. Missing references, unsupported versions, or export limitations can resemble corruption. After confirming a working result, back up the file and its dependencies together, with a clear application version and revision label.

Frequently Asked Questions

Why are some elements missing from the recovered drawing?

They may belong to external reference files rather than the main DGN.

Will exporting to DWG preserve every DGN feature?

Not necessarily. Validate the native recovered drawing before converting it.

Should I save a repaired or converted copy over the recovered original?

No. Keep the recovered original unchanged and work on duplicates. This preserves alternatives if a conversion, upgrade, or repair drops important information.
