Extend C drive or system partition in Windows 11/10/8/7

PAGE CONTENT:

3 Ways to Increase C Drive Space in Windows 11/10
Upgrade to a Larger Hard Drive Without Data Loss
Tips to Extend C Drive in Windows 11/10
Related Questions on Extending Partition Windows 11/10

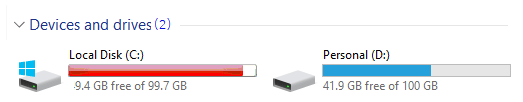

Windows 10 C drive is out of space:

When the C drive (system partition) is out of space, you can extend it by moving unallocated space to the C drive, shrinking a nearby partition to make space available, or by using a third-party partition manager to resize the partition. Alternatively, you can consider deleting unnecessary files and programs, or upgrading your hardware to increase storage capacity. If hardware upgrades are not possible, you can use the built-in Disk Management tool in Windows 10 to extend the C drive by shrinking a nearby partition and allocating the freed space to the C drive.

1 - Extend C Drive or System Partition in Windows 10

For users seeking a hassle-free and professional way to extend their C drive, Qiling Partition Master is the ideal solution.

Solution 1. Let Qiling Partition Manager Software Help

Qiling Partition Master is a comprehensive hard disk partition management software that offers all powerful functions for free, making it a magic partition software.

1. Extend system partition

2. Resize and Move partitions

3. Copy Partition/Disk

4. Create, Deleted, and Format partitions

5. Hide and Unhide partitions and more...

This software works seamlessly with hardware, including RAID configurations, and is compatible with all Windows Operating Systems, ensuring complete data protection during all operations.

Your Reliable Choice - Qiling Partition Master

Extend partition - To maximize computer performance and solve low disk space problems, you can extend the system partition. This involves resizing the partition to allocate more space for the operating system, applications, and data.
Shrink partition - manage disk space better for different usage.
Move partition - To extend a partition, you need to make space behind it unallocated. This involves deleting the partition you want to extend from, and then creating it again with the desired size.

Free Download

Tutorial 1. Smart Extend C Drive with Low Disk Space Error

Download and install Qiling Partition Master, and follow the steps below to resize a partition in Windows 11/10.

Step 1. Click "Adjust with 1-Click" to extend C drive.

When your C drive runs out of space, you'll see a Low Disk Space alert on Qiling Partition Master.

To extend a partition, you should first locate the target partition and select "Resize/Move".

Step 2. Extend the Target Partition

To add unallocated space to your current partition, drag the partition panel rightward or leftward to merge the unallocated space with your current partition. Once you've made the desired adjustments, click "Proceed" to initiate the resizing process.

Tutorial 2. Add Space to C Drive, Extend System Drive with Space from Other Drive

Option 1. Extend System C drive with unallocated space

1. Click on the System C: drive and select "Resize/Move".

2. It will prompt a confirmation window to initialize PreOS, requiring a click on "OK" to proceed.

3. Drag the system partition end into the unallocated space to add it to the C: drive, then click "Proceed" to resize the partition.

4. The tool will automatically reboot your PC to Windows Preinstallation Environment (WinPE) and resize the System C partition to a larger size.

Option 2. Extend System C drive without unallocated space

1. To resize a partition, click on a large partition with sufficient free space on the system disk, then select the "Resize/Move" option.

2. To shrink a partition, drag the beginning of the big partition drive into the partition space, then click "Proceed" to confirm.

3. Extend System C drive with unallocated space.

After executing the operation, the program may prompt a window asking you to restart your computer. Follow the software's instructions and restart your computer as required.

Your Windows 10 PC will restart with a larger system C drive and improved computer performance.

Qiling Partition Master offers advanced partition management features, a partition recovery wizard, disk cleanup and optimization, and data wipe capabilities.

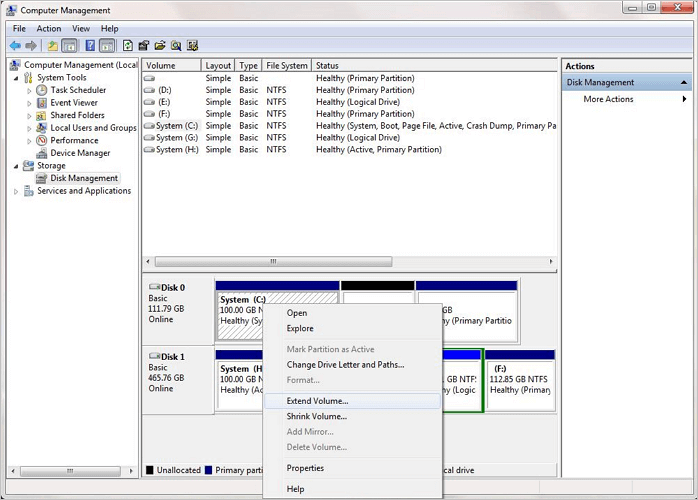

Solution 2. Extend C Drive Windows 10 via Disk Management

To expand a partition using the built-in Disk Management utility in Windows, the unallocated space behind the partition must be available. If there's no unallocated space, the "Extend Volume" option will be greyed out and unavailable, preventing the partition from being expanded.

Step 1. Right-click My Computer and choose "Manage -> Storage -> Disk Management".

Step 2. Right-click on the partition that you want to extend, and choose "Extend Volume" to continue.

Step 3. Set and add more size to your target partition and click "Next" to continue.

Step 4. Click "Finish" to complete the process.

Solution 3. Extend C Drive Windows 10 via CMD

While Disk Management is a built-in tool for managing disks and partitions in Windows, there's another tool called Diskpart that serves the same purpose. However, inexperienced users should exercise caution when using Diskpart or the Windows Command Prompt, as a small mistake can cause irreparable damage to the entire hard drive.

Step 1. Press Windows + X keys and choose "Command Prompt (Admin)".

Step 2. Type the following commands and each one ends with "Enter" key:

diskpart

list volume

select volume x

extend size =number

In Windows 11/10, if there is no unallocated space, you can't extend the C drive using the built-in Disk Management tool, as it requires unallocated space to extend a volume. However, if your system C drive is Volume 1, you can try using a third-party partition manager software to extend the C drive by shrinking another volume and allocating the freed space to the C drive. This method may require some technical expertise and caution, as it involves modifying the disk layout.

2 - Upgrade to a Larger Hard Drive Without Data Loss

If you're running out of space on your C drive, consider cloning and replacing it with a larger drive. Alternatively, you can migrate just the Windows operating system to a new drive, leaving other data intact.

Also Read: How to migrate OS from HDD to SSD

Free Download

You can clone your entire C drive, including both the system and data, using Qiling Partition Master's cloning feature. This allows you to easily and quickly move your system and data to an SSD or HDD. To do this, follow the steps below:

1. Launch Qiling disk master software and click Clone.

2. Select the source disk you want to clone and click Next.

3. Select the destination disk and click Next.

If you clone a partition to an existing partition, it's essential to transfer or back up your data first to prevent it from being overwritten during the cloning process.

4. Review the disk layout to confirm the settings of the source and destination disk, and select "Optimize for SSD" to enhance SSD performance.

5. Click Proceed to execute disk clone.

To partition a hard drive in Windows 10, follow these steps: Open the Start menu and select Settings. Click on the "Update & Security" option, then select the "Activation" tab.

Tips to Extend C Drive in Windows 11/10

To extend C drive in Windows 10 without software, you can try reducing the possibility of C drive full and increasing C drive space by using other tips. In addition to the solutions mentioned earlier, you can also consider these alternative methods to manage your C drive storage.

1. Move the print spooler and page file to another drive.

2. You can also merge other partitions into C drive for more space.

3. Applying professional partition manager software with the Cleanup and Optimization feature can help speed up your slow computer, clean up junk files, and repair the Windows system, freeing up a significant amount of space on the C drive and other partitions.

4. The recycle bin is a storage space for deleted files, which remain there until you empty it, freeing up some disk space by removing the deleted files from the C drive.

Right-To empty the recycle bin, click on the recycle bin icon on your desktop and select "Empty Recycle Bin".
Or double-To empty the recycle bin, click on it and select the "Empty Recycle Bin" option from the top of the folder window.

1. Can we extend the C drive?

You can use third-party software like Disk Management or Diskpart to expand your C drive in Windows 10, with Qiling partition software being a recommended option as it can easily and quickly extend any drive.

2. How do I add storage from D to C?

Launch Qiling Partition Master and locate the target partition which you would like to extend. If there is unallocated space left on your disk, use the "Resize/Move" feature to extend partition. If there is no unallocated space on your disk, use the Allocate Space feature to extend the desired partition.

Free Download

3. Why extend volume grayed out windows 11/10/8.1/7?

If you're trying to increase the space on your C drive using Disk Management, you can right-click "Computer", choose "Manage" to access Disk Management. However, if the "Extend Volume" option is grayed out, it's because there's no unallocated space available on your hard disk.

4. How to add space to C drive?

Launch Qiling Partition Master.
To resize or move the system drive, click on the C: drive in the Disk Management page and select the "Resize/Move" option.
Drag the system partition end into the unallocated space.
To execute the changes and extend the C drive, click "Proceed".
