Logical vs Primary | What's the Difference and Which Is Better

Hard disk partitioning involves dividing the overall storage space into multiple independent areas, used for installing operating systems, applications, and storing data files. This process often involves two common partition types: logical partitions and primary partitions. To avoid confusion, it's essential to understand the definitions and differences between these two, especially before partitioning a new hard drive disk (HDD) or solid-state drive (SSD).

What is the Primary Partition?

The primary partition is the hard disk partition where both Windows OS and other data can be stored, and it's the only partition that can be set active, allowing the system to boot from it. A maximum of 4 primary partitions or 3 primary partitions and a single extended partition can be created on a disk drive.

What is the Logical Partition?

A logical partition, also known as LPAR, is a way to segment a mainframe's memory and resources, allowing it to run its own operating system and applications. This segmentation is limitless, enabling multiple logical partitions to coexist on a single MBR disk.

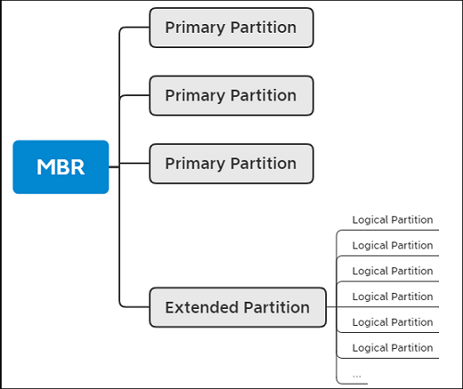

A tree diagram illustrates the hierarchical relationship between primary partition, extended partition, and logical partition in an MBR disk, visually representing how they coexist and interact.

What's the difference between Primary and Logical Partition

The distinction between logical partitions and primary partitions lies in their respective hierarchies, resulting in two distinct aspects of dissimilarity.

• Importance

The legacy MBR bootloader can only boot from a primary partition, making primary partitions essential to an MBR disk. Without a primary partition, a computer cannot be booted, highlighting a key difference between logical and primary partitions.

• Number Limitation

In an MBR disk, you can have up to 4 primary partitions or 3 primary and 1 extended partition, which can be divided into multiple logical partitions. This allows for flexible partitioning to meet your storage needs.

In a GPT (GUID Partition Table) disk, you can create more than 4 primary partitions, with a maximum of 138 possible partitions. Unlike MBR (Master Boot Record) disks, which have a limit of 4 primary partitions, GPT disks do not have a logical partition. This allows for more flexibility and space for partitioning in GPT disks.

Logical vs Primary Partition | Is Logical Partition Better than Primary?

You can't compare logical and primary partitions in a yes-or-no way, as one primary partition is required on your disk to boot the computer, making it a necessary choice rather than a better or worse one.

Logical vs Primary

1. There is no difference between the two kinds of partitions in terms of their ability to store data.

2. When you need more than 4 partitions on a disk, creating logical partitions is a better choice than using the MBR disk, which only allows for 4 partitions.

How to Check the Partition Type on the Computer

The information provided does not contain any specific details about primary and logical partitions. However, I can provide a general overview of how to check the number of primary and logical partitions on a Windows computer using Disk Management.

Step 1.Right-click "This PC" and choose "Manage".

Step 2.Go to "Disk Management".

Step 3.The system displays the number of primary partitions and logical partitions, as well as the disk type, file system, and partition status in a concise manner.

How to Interconvert Logical and Primary Partition

Convert from Primary Partition to Logical Partition or Vice Versa

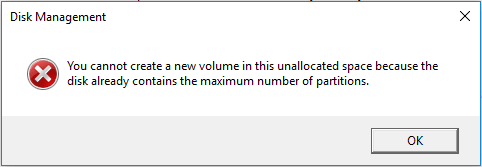

When creating partitions in Disk Management, you may encounter an error stating "You can not create a new volume in this unallocated space because the disk already contains the maximum number of partitions." This occurs when a hard disk has 3 primary partitions and 1 extended partition, leaving no room for additional primary partitions. To resolve this, convert one of the primary partitions to a logical partition.

Here, we suggest using a Windows partition manager, specifically Qiling Partition Master, to easily convert partitions and optimize disk space. With this tool, you can move the system reserved partition to another drive, partition a new hard drive, resize partitions, and more, making it effortless to manage your disk space.

You can now download the software and follow the guide below to convert a primary partition to a logical partition or vice versa. The guide provides step-by-step instructions on how to make this conversion.

Step 1. Download and run Qiling Partition Master.

Step 2.To convert a partition, click on the partition you want to convert and select the conversion options.

• 1. Convert to Logical
• 2. Convert to Primary

 Qiling Partition Master will check the volume first. After that, you can find the pending operation in the upper left corner.

Bonus Tip: MBR and GPT

In case some users have no idea of what is MBR, here we'd like to give a brief introduction to the definition of MBR and GPT. If you are interested in it, please keep reading and learn more about it.

MBR

MBR (Master Boot Record) and GPT (GUID Partition Table) are two partition styles used on Windows-based computers. MBR, an older disk-type introduced in 1983 with IBM PC DOS 2.0, is named after the boot sector located at the beginning of a drive, called the MBR. In contrast, GPT is a newer partition style that provides more flexibility and support for larger disk sizes, making it the default partition style for modern Windows systems.

GPT

GPT (GUID Partition Table) is the newer standard for partitioning schemes, introduced as part of the UEFI initiative. It's more flexible and compatible with modern hardware compared to the older MBR (Master Boot Record) scheme, offering better performance and functionality.

If you want to check more information about MBR and GPT, you can refer to this article on MBR vs GPT.

The Bottom Line

Understanding the concepts of logical partition and primary partition is crucial when partitioning a new disk. A primary partition is one of the four partitions that can be created on a disk, and it is the partition where the operating system is installed. On the other hand, a logical partition is a partition that is created within a primary partition, allowing for more flexibility and space allocation.
