Set Up the Boot Mode in MBR for BIOS, Legacy or UEFI
Configuring the correct boot mode for your OS drive is essential when setting up a computer.
If you get the error "Windows cannot be installed to the disk. The selected disk is not of the GPT partition style" while installing Windows, it's likely because your PC is in UEFI mode but your hard drive is not configured for UEFI mode.
To get rid of this problem, you can try the following steps:
In this article, you'll learn:
- The first step is to confirm whether the computer is shipped with BIOS or UEFI firmware. This can be done by checking the computer's documentation, manufacturer's website, or by looking for a sticker on the computer's motherboard that indicates the type of firmware used. If the computer is shipped with UEFI firmware, it is likely to have a more modern and secure boot process, whereas BIOS firmware is typically older and less secure.
- #2. Check If Windows Supports MBR or GPT
- To set up the right boot mode in the Master Boot Record (MBR) for BIOS or UEFI, follow these steps:
Let's get started here.
#1. Confirm If Computer Is Shipped with BIOS or UEFI Firmware

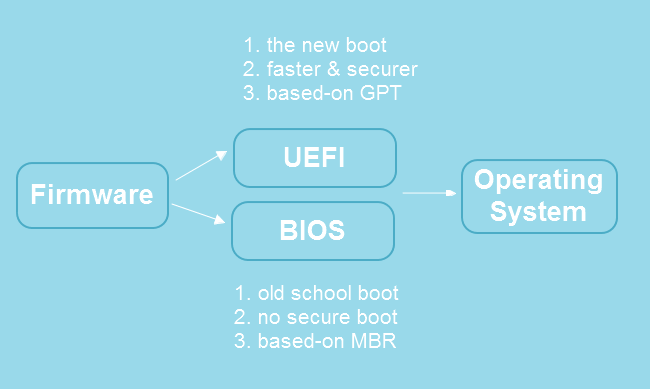

To configure the right boot mode for your operating system, it's essential to understand the two boot modes in Windows: BIOS (Legacy) and UEFI. UEFI, or Unified Extensible Firmware Interface, is a newer firmware interface that provides a more secure and feature-rich alternative to traditional BIOS. The main differences between UEFI and BIOS lie in their capabilities, with UEFI supporting features like secure boot, faster boot times, and the ability to boot from larger storage devices. Understanding these differences is crucial to setting up the correct boot mode for your operating system.
The primary difference between BIOS and UEFI lies in their functionality and capabilities. BIOS (Basic Input/Output System) is an older firmware interface that provides a basic set of instructions for the computer to boot and configure hardware components.
| Comparison | BIOS | UEFI |
|---|---|---|
| Definition | BIOS, short for Basic Input-The output system, also known as the low-level software, is responsible for waking up the computer's hardware components, ensuring they're functioning properly, and running the bootloader to boot Windows and other operating systems. | UEFI is also low-The UEFI (Unified Extensible Firmware Interface) is a modern software solution that takes over from the traditional BIOS (Basic Input/Output System) in booting a PC and its operating system. Unlike the older BIOS, UEFI supports larger hard drives, enables faster boot times, offers enhanced security features, and provides a more user-friendly interface with graphics and mouse cursors, making it a more convenient and efficient way to start up your computer. |
| Differences |
|
|
Intel plans to replace BIOS with EUFI on all their chipsets by 2020.
If your Windows computers have Intel chips shipped after 2020, they will all require UEFI boot mode.
To determine if your computer is running BIOS or UEFI firmware, you can check the boot mode by following these steps: Look for the BIOS or UEFI settings in your computer's firmware, usually accessible by pressing F2, F12, or Del keys during boot-up. Check the boot mode in the BIOS or UEFI settings, it should say either "BIOS" or "UEFI". If it says UEFI, then your computer is running UEFI firmware.
Option 1: Use System Information to Check If Your PC Used BIOS or UEFI
Step 1. Open Start, type system information in the search box, and click to open it.
Step 2. Find the BIOS Mode under System Summary.
- If it says Legacy, your device is using BIOS.
- If it says UEFI, your PC is running with UEFI.
Option 2. Use setupact.log to Check If Your PC Uses BIOS or UEFI
Step 1. Open File Explorer, and go to the following path:
LocalDisk(c:)/Windows/Panther.
Step 2. Find and open the setupact.log file in Notepad.
Step 3.To determine whether your device is using BIOS or UEFI, you need to locate the Detected Boot Environment, where you can verify the boot mode your device is currently using. This information is crucial for troubleshooting and configuring your device's boot settings.
#2. Check If Your Windows Is MBR or GPT
To determine whether your Windows OS drive is using MBR or GPT, follow this quick guide. You can check by using the built-in command-line utility, diskpart, which comes with Windows. Open Command Prompt as an administrator, type "diskpart", and press Enter.
Step 1.Open Disk Management, right-click on Disk 0, and select Properties.
Replace 0 with the correct disk number of your Windows drive.
Step 2. To determine the partition style of a disk, click on the "Volumes" tab, and then locate the listed format next to "Partition style".
The partition style is either Master Boot Record (MBR) or GUID Partition Table (GPT).
Now that you know your computer's boot mode and disk partition style, you can proceed with the next part of the guide. This will involve setting up the right mode in the Master Boot Record (MBR) for a BIOS system. By doing so, you'll be able to configure your computer to boot correctly in MBR mode, ensuring a smooth and efficient startup process.
If you're looking for a reliable tool to convert a disk between MBR and GPT without losing any data, Qiling Partition Master is a capable option.
#3. Set Up Right Boot Mode in MBR for BIOS - Legacy or UEFI
To configure the right mode for your Windows disk, consider the following tips:
- MBR is configured with BIOS Legacy Boot Mode.
- GPT is set up with UEFI Boot Mode.
The primary difference between MBR and GPT is that MBR only supports 4 primary partitions, while GPT supports up to 128 partitions. If you need to create more than 4 partitions on a disk, you should use GPT. If you only need 4 or fewer partitions, MBR is sufficient.
- Disks with 2TB or smaller capacity can be set up with MBR partition style.
- 3TB or larger disks are typically set up with the GPT (GUID Partition Table) style partitioning scheme, which allows for larger partition sizes and more flexibility in disk management. This is in contrast to the older MBR (Master Boot Record) style, which has limitations on partition size and number.
The correct answer is indeed BIOS Legacy, as MBR (Master Boot Record) is a type of partition table that was used in older systems that booted in BIOS Legacy mode. When the OS drive is 2TB or smaller and uses MBR, it's a sign that the system is booting in BIOS Legacy mode. Therefore, the correct answer is BIOS Legacy.
Here is the process to set up the right boot mode in MBR for BIOS in one paragraph:
Step 1.To reboot the PC and enter the BIOS menu, simply restart the computer and press the corresponding key (usually F2, F8, F11, or Del) as it boots up, which will take you to the BIOS settings.
Step 2. To set the Boot Mode to Legacy BIOS, go to the Boot tab, select the Boot Mode option, and use the up and down arrow keys to select Legacy BIOS Boot Mode. Then, press Enter to confirm the selection.
Step 3. Press F10 to save the changes and exit BIOS.
Once the process is complete, Windows will be able to boot up successfully on your MBR disk. The computer will then reboot and Windows will start up normally. Your MBR disk is now set up to work with Windows.
If you're planning to switch your OS disk to GPT or move your OS to a larger GPT HDD/SSD, make sure to change your BIOS mode from Legacy to UEFI before proceeding. This ensures a smooth transition.
