How Do I Partition SSD on Windows 11? 5 Things You Need to Know
To partition an SSD drive on Windows 11, you can use the built-in Disk Management tool. If the SSD was shipped with Windows 11 and has only one drive, you can open Disk Management (Press the Windows key + R, type "diskmgmt.msc" and press Enter), select the SSD, and click "Shrink" to create a new partition. If you want to separate the OS from your documents and personal files, you can create a new partition for your files and move them to it. If you added a new SSD, you can initialize it, create a new partition, and format it to use it for storing files.
Relax. Follow this page, learn the 5 critical things about partitioning SSD in Windows 11, you'll find answers to all of your questions. Let's go ahead.
5 Things You Should Know About Partition SSD
When you buy a new Windows 11 computer, it's usually shipped with a Solid-State Drive (SSD) that has only one drive partition, which can lead to confusion and mistakes when trying to manage the operating system files and personal documents.
Creating separate partitions for the operating system and personal data on an SSD is becoming increasingly necessary. To understand this need, it's helpful to know a few key facts about SSDs. Here are 5 things you may want to know:
#1. Can SSD Drives Be Partitioned
#2. Does Partition Slowed Down SSD
#4. Should I Partition My SSD for Windows 11
#5. How Do I Partition My SSD in Windows 11
If you added a second SSD on Windows 11, you can transfer the OS to it, following the steps in the article "How to Install Windows 11 on SSD" for assistance.
#1. Can SSD Drives Be Partitioned

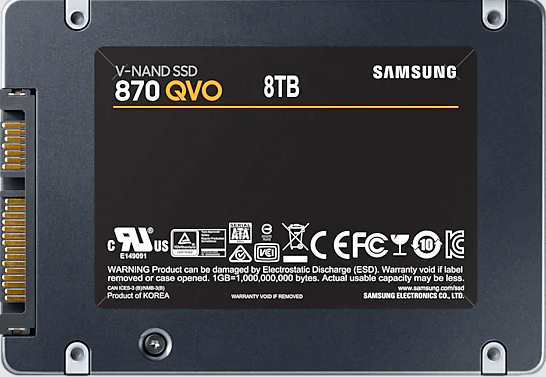

A Solid State Disk (SSD) is a physical storage device that provides space for users to install an operating system, applications, and save files, similar to a hard disk drive, but with faster data access times and no mechanical parts.
And you can partition and re-If you need to create two or more partitions on the SSD, you should allocate the drive space accordingly. This means setting aside a portion of the drive for each partition, leaving enough space for the operating system, programs, and data. For example, if you have a 1TB SSD, you might allocate 500GB for the operating system and programs, and 500GB for data and other files.
The partition numbers of different types of disks are not the same.
- MBR - 3 primary partitions + 1 logical partition.
- GPT- 128 partitions.
#2. Does Partition Slowed Down SSD
Partitioning a solid-state drive (SSD) will not slow it down. Regardless of the number of partitions created or deleted, the SSD's reading and writing speed remains unaffected. The SSD's performance is determined by its hardware specifications, such as its controller, memory, and interface, rather than the number of partitions or data stored on it.
Here are two factors that will affect the disk speed:
- Bad sectors
- 4K alignment
To test if your SSD disk contains bad sectors or check if it's 4K aligned, we recommend using Qiling Partition Master. Its surface test and 4K alignment features can detect SSD speed issues caused by bad sectors or misalignment, allowing you to optimize its performance with this tool.
#3. Is Partitioning SSD Bad?
SSDs can be partitioned and repartitioned like HDDs, without any harm to the SSD itself.
Partitioning your SSD can help you make the most of your disk space, allowing you to organize your OS, installed programs, and personal data in a logical and efficient manner.
Be cautious when deleting or formatting volumes on an SSD or HDD, as it can result in data loss.
Before deleting, formatting, or erasing an existing partition on your SSD disk, ensure you've backed up all essential files to prevent data loss.
#4. Should I Partition My SSD for Windows 11
It depends.
- If you have a small SSD with a capacity of 120GB or less and a larger hard drive on your computer, consider using the small SSD as your operating system disk and storing files on the larger hard drive. This setup can help you make the most of your storage space.
- If you have a large SSD, such as 250GB or more, or only one disk on your Windows 11 computer, it's recommended to separate the OS drive from the data drive. This can be done by leaving around 100-120GB of space for the OS drive, allowing for a dedicated partition for your operating system and another for your data. This separation can help maintain a healthy and organized system.
When Windows 11 detects low disk space on your OS or data drive, it may prompt an error. To resolve this, you can repartition your SSD, freeing up unallocated space on the target volume.
Partitioning your SSD to leave enough space for the OS drive is crucial to maintain your computer's peak performance.
#5. How Do I Partition My SSD in Windows 11
In Windows 11, you have three options for partitioning an SSD: using the built-in Disk Management tool, executing commands in the Command Prompt, or utilizing a third-party partition manager software like Qiling Partition Master.
To partition an SSD disk in Windows 11, you can use the built-in Disk Management tool or a third-party partition manager like Qiling Partition Master. Using Disk Management, you can create, delete, and resize partitions, as well as format and assign drive letters.
1. Partition an Existing SSD Disk
2. Partition a Second & New SSD
How to Partition Existing/Used SSD in Windows 11
Use Disk Management:

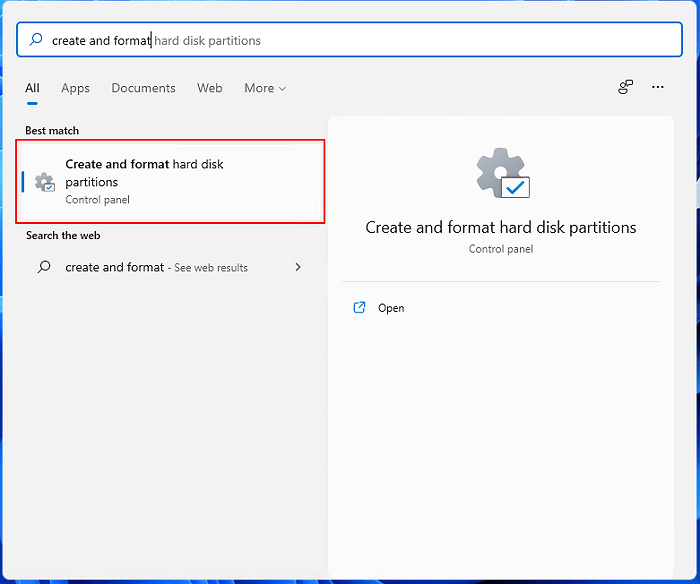

Step 1. Press Windows + S, type partition, and select Create and format a hard disk partition.
Step 2. When Disk Management opens up, check the state of your SSD disk and follow the next guides to partition it.
Step 3. Create new partitions on SSD
With unallocated space on SSD:
1. Right-click the unallocated space.
2. Select New simple volume.
3. Enter name, size, and file system for the new volume.
4. Click Next and Finish.
With no unallocated space:
1. Right-click on a partition with enough free space.
2. Select Shrink volume.
3. Enter space size to shrink and click Shrink.
4. Right-click on unallocated space, select New Simple Volume.
5. Set name, size, file system for a new drive, click Next and Finish.
Use Partition Manager Software - Qiling Partition Master:
Qiling Partition Master allows users to partition a solid-state drive (SSD) in Windows 11, providing an advanced partition hard drive feature that caters to all levels of users, from beginners to experts.
Step 1. Launch Qiling Partition Master, click on the unallocated space on your hard drive or external storage device, and select "Create" on the main window.
Step 2. Adjust the partition size, file system, label, etc. for the new partition and click Proceed to continue.
Use DiskPart Command:

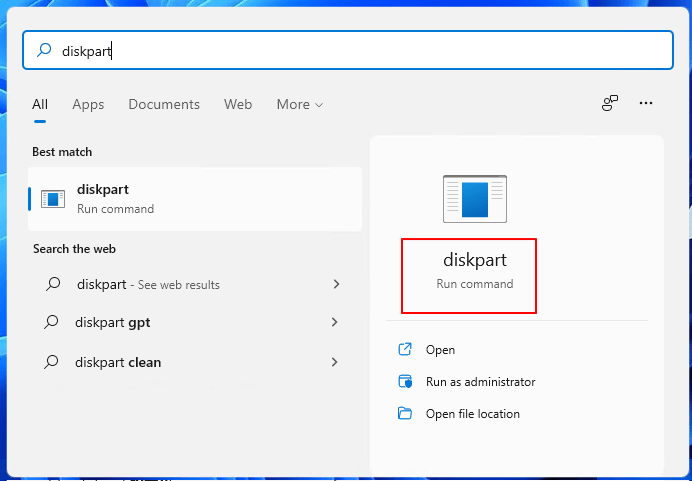

Step 1. Press Windows + S, type diskpart, click the result to open it.
Step 2. To Create New simple volume on SSD:

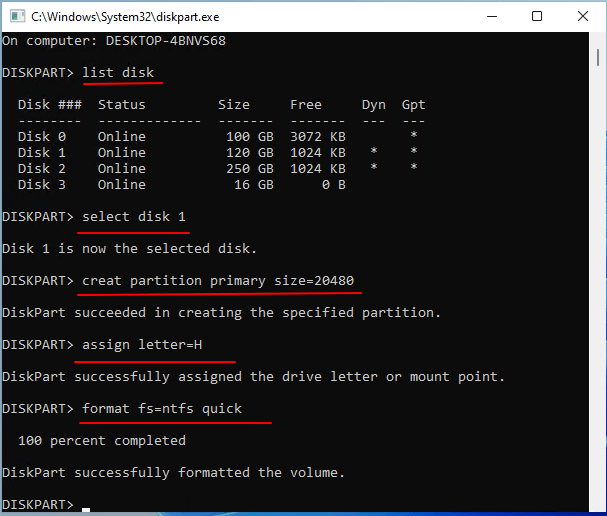

With unallocated space:
- list disk
- select disk 1
- create partition primary size=####
- assign letter=*
- format fs=ntfs quick

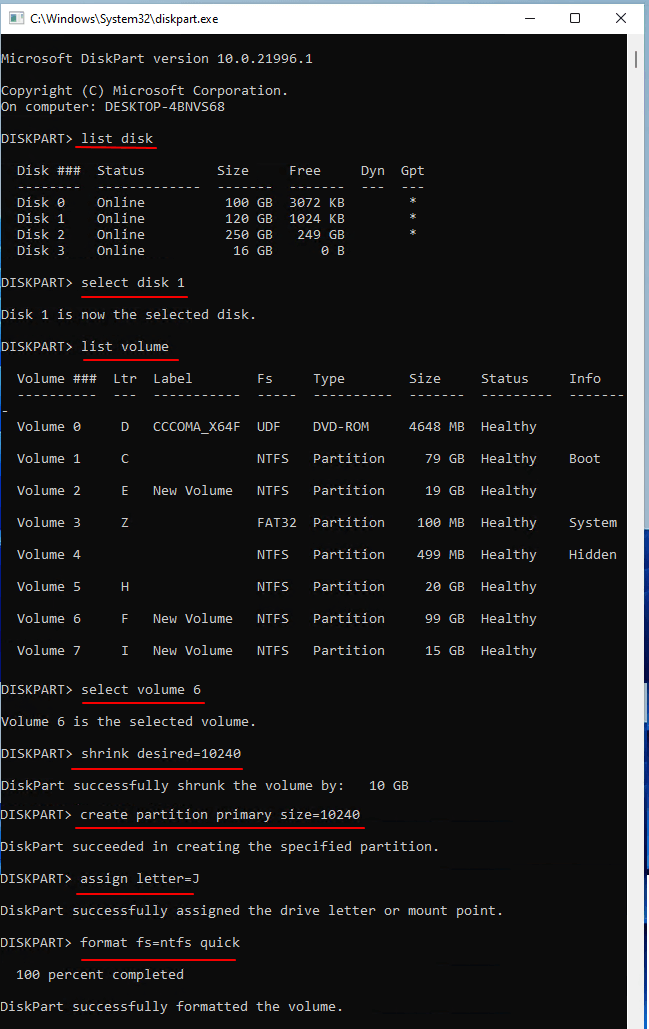

Without unallocated space:
- list disk
- select disk *
- list volume
- select volume * (next to target volume)
- shrink=###
- create partition primary size=###
- assign letter=*
- format fs=ntfs quick
Step 3. Type exit to close the command prompt windows when the operation completes.
How to Partition a New/Second SSD in Windows 11
Method 1. Use Disk Management
Step 1. Press "Windows + S" keys, type partition, and select Create and format hard drive partition from the result.
Step 2. Once Disk Management opens up, locate and right-click on the new SSD, select Initialize Disk.
Step 3. When choosing a disk type for your SSD, consider selecting GPT (GUID Partition Table) if you plan to use it as an OS disk. This is a suggested option.

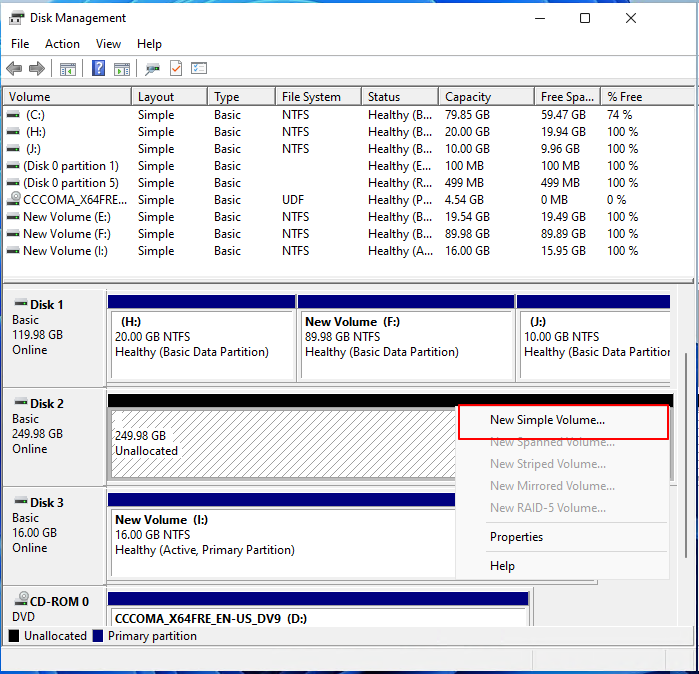

Step 4. Right-click on unallocated space, select New Simple Volume, set name, file system, and size to the new volume.
Step 5. Click Next and Finish.
To create more partitions based on your needs, repeat the process of creating new simple volumes. This involves selecting the appropriate storage device, choosing the desired size for the new partition, and assigning a label and file system type.
Method 2. Use Qiling Partition Master
Qiling Partition Master is a comprehensive disk & partition magic tool that can fully replace the Windows Disk Management in basic functions, allowing you to format a disk partition, delete a partition, create a new partition, and more, even for external hard drives with multiple partitions.
First, one-click to adjust disk layout on SSD
Step 1. Click the hard drive partition and choose the "Move/resize" option.
Step 2. To resize a partition, move the mouse to the edge of the partition and drag it to the desired size, then click "Proceed" to confirm the changes.
Next, one-click to convert the SSD to MBR or GPT
Step 1. Click the MBR disk that you want to convert.
Step 2. Click "More..." and click "MBR -> GPT" to convert partition.
Method 3. Use DiskPart Command
Step 1. Press "Windows+S" keys, and type cmd, right-click Command Prompt, select Run as Administrator.
Step 2. Type diskpart and hit Enter.

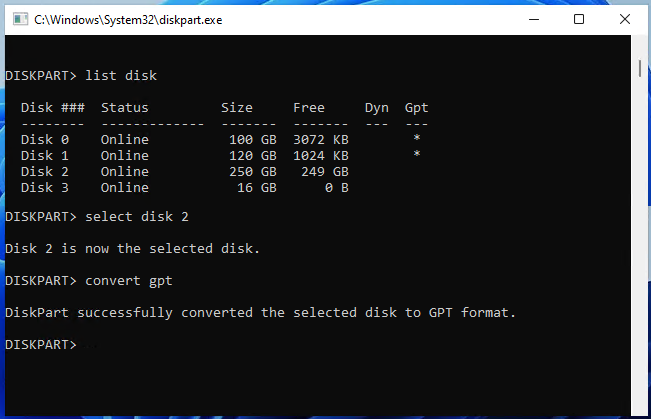

Step 3. Type the following command one by one and hit Enter each time:
- list disk
- select disk #
- convert gpt
Step 4. Type the next commands one by one and hit Enter each time:
- list disk
- select disk
- create partition primary size=###
- assign letter=*
- format fs=ntfs quick
Repeat the process to create more volumes on the new SSD.
Step 5. Type exit to close the command prompt windows.
SSD Is Suitable for Running Windows 11, Go and Partition It For Your New OS Now
In Windows 11, partitioning an SSD is an essential consideration, especially since SSDs are well-suited for running the operating system. As a trend, manufacturers are increasingly shipping computers with SSDs, making it a viable option for users. Knowing how to partition an SSD in Windows 11 is crucial, and here are five key things to consider.
If you have an SSD, partition it for your new operating system now. We recommend using Qiling Partition Master, the easiest tool for managing and partitioning SSDs.
