What Is Boot Disk? Get A Boot Disk for Abnormal System Startup
What is Boot Disk?
The boot disk is a removable storage medium with special functions written into an operating system image file, used to help a computer load and boot an operating system or utility program when it crashes. Originally, boot disks were optical discs or floppy disks, but with advancements in mobile storage technology, CD-ROMs, ZIP drives, USB flash drives, and mobile hard disks have also been used as boot disks, provided that the computer's BIOS supports booting from the relevant device.
Common Forms of Boot Disk
The most common boot disks are explained in detail below. These disks are used to start a computer and load the operating system.

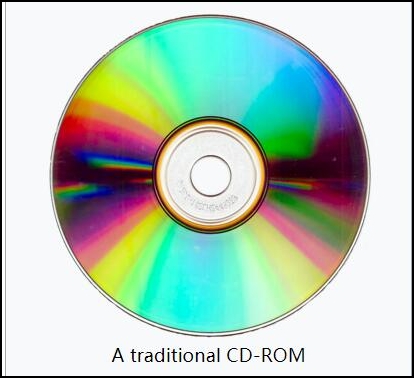

1. CD-ROM
CD-ROM (Compact Disc Read-A CD-ROM (Compact Disc-Read Only Memory) is a type of computer memory that uses a compact disc read by optical means. It uses a low-power laser beam to read binary data encoded in tiny pits on the disc, allowing it to read data CDs, including CD-R and CD-RW discs, and transfer the data to a computer for processing.

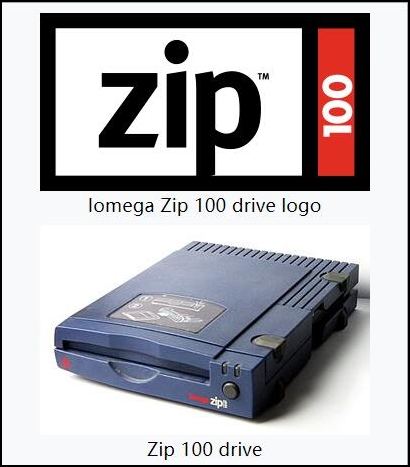

2. ZIP drive
A Zip drive is a medium-Iomega launched the Zip drive in 1994, a portable magnetic disk storage system that could store a larger number of data than a floppy disk. It was durable and reliable due to its fast data transfer capabilities, and was available in capacities of 100-MB, 250-MB, and 750-MB.
3. USB flash drive
A USB flash drive, also known as a thumb drive, is a small, portable data storage device that combines flash memory with a USB interface, making it removable, rewritable, and lightweight. It's commonly used for storage, backups, and transferring computer files, and is available in various sizes from 8-256 GB.
Where Is It Used for?
- Operating system installation can be performed by booting an operating system install or disk cloning operation across a network.
- If your data is inaccessible, lost, corrupted, damaged, or formatted, data recovery can be used to recover deleted files from removable media.
- BIOS flashing involves upgrading the system's basic input/output system to a newer version, typically to fix bugs, improve performance, or support newer hardware. This can be done by flashing a BIOS image from a hard drive or USB flash drive, allowing users to upgrade their system's firmware to take advantage of the latest features and improvements.
- Data purging involves physically rewriting sensitive data from a system or storage device, with the intent that the data cannot be recovered, ensuring its complete removal and protection.
- For Amiga home computers, you can run MS-DOS video games on modern computers by using a bootable MS-DOS or FreeDOS USB flash drive.
Requirements According to Different Operating Systems
Different operating systems have different boot disk contents, which means that boot disks must be compatible with the specific operating system they are designed for, including pre-designed computers.
For Windows:
- Windows Boot Manager
- BOOT.WIM
For Linux:
- A bootloader
- Linux kernel
- Initial ram disk
For MS-DOS/PC DOS/DR-DOS:
- A volume boot record, also known as a volume boot sector, is a type of boot sector that is used to load an operating system from a hard drive or other storage device. It is a small program that is stored at the beginning of a volume, such as a hard drive partition or a removable storage device like a USB drive, and is responsible for loading the operating system into memory.
- IO.SYS or IBMBIO.COM
- MSDOS.SYS or IBMDOS.COM
- COMMAND.COM
For FreeDOS:
- A valid boot sector on the disk
- COMMAND.COM
- KERNEL.SYS
Conclusion
You're now familiar with the concept of a boot disk and its common applications. When selecting a suitable boot drive for your operating system, be mindful of the necessary requirements.
FAQs:
1. Why is my computer asking for a boot disk?
The error is caused by the system's inability to locate the boot drive and necessary boot files, often due to physical damage to the hard drive or software-related issues.
2. How do I fix the boot disk?
- Restart the computer
- To access the BIOS settings, you typically need to press a specific key during the boot process, and the possible keys can vary depending on the computer or motherboard. Common keys used to enter the BIOS settings include Esc, Del, F2, F8, F10, or F12.
- Go to the Boot tab
- The best way to install a new operating system is to use a USB drive or a hard disk. A USB drive is a convenient option, but it can be slow and may not have enough storage space for a full operating system installation.
- Save these settings
- Restart the computer again
