[Fixed] Unable to Reset Your PC. A Required Drive Partition Is Missing

On this page, we'll explain what causes Windows unable to reset your PC, and provide a solution to fix this issue without losing any data, allowing you to reset your PC successfully.

Follow the effective solutions here to fix the "Cannot reset PC" error  to unlock the drive to reset your computer without losing any data:

Applies to: To fix the "Unable to Reset Your PC" error in Windows 10/8.1/8/7, etc., without losing any data, start by booting in Safe Mode and running the System File Checker (SFC) tool to scan and replace corrupted system files. If that doesn't work, try running the DISM (Deployment Image Servicing and Management) tool to repair any corrupted system components. If the issue persists, create a bootable USB drive or CD/DVD with a Windows installation media, and run the built-in System Restore tool to restore your system to a previous point when it was working properly.

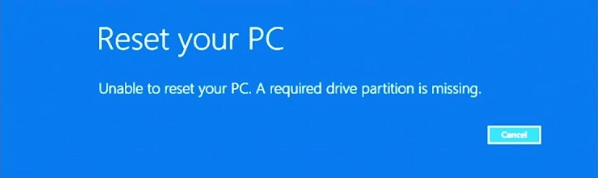

Error: Unable to Reset Your PC

When trying to reset your PC using a USB drive created with the Media Creation Tool, you're encountering an error saying "Unable to Reset PC. A required drive partition is missing." This issue is likely due to a problem with the USB drive itself or the way it was created. Try creating a new USB drive using the Media Creation Tool, selecting the correct language, architecture, and edition of Windows, and ensuring the USB drive is properly formatted.

Encountering an issue while trying to reset your PC in Windows 10/8/7 can be frustrating. Fortunately, the problem can be resolved by identifying and addressing the underlying cause. The solutions vary depending on the cause, but common issues include a malfunctioning Windows Update, corrupted system files, or a failing hard drive.

Causes of "Unable to Reset Your PC. A Required Drive Partition Is Missing" Error

Apart from the missing drive partition error, another common issue that prevents a PC reset is when the drive where Windows is installed is locked.

The error message "A required drive partition is missing" typically occurs when trying to perform a system reset or install a fresh version of Windows 10/8/7. This error may appear due to various reasons, including a missing or corrupted system partition, a failed system image backup, or an issue with the boot configuration. It can also be triggered by a problem with the Windows installation process, such as a faulty installation media or a corrupted system file. The error message usually prompts for a solution, such as creating a new system partition or running a system repair tool.

• The Master Boot Record (MBR) or Boot Configuration Data (BCD) has become corrupted, which is preventing the computer from booting up normally. This corruption can be caused by a variety of factors such as a virus, a power outage, or a software issue.
• There is something wrong with your computer disks
• You system files are missing or damaged
• As the error indicates, a required drive partition is missing

The solutions to the problem vary depending on the specific causes, which include [list the causes]. For each cause, the corresponding fix is [list the fixes].

Part 1. Recover Data from Missing Partition and Back Up Important Files

To prevent data loss when resetting your PC, consider using a cloud storage service like OneDrive or Google Drive to back up your important files. You can also use an external hard drive or USB drive to store your data.

To reset your PC despite encountering the 'a required drive partition is missing' error, ensure you've completed the two preparatory steps listed.

#1. Recover Data from the Missing Partition

To avoid further data loss, check which partition is missing on your PC and use reliable data recovery software to recover the missing files first.

Here, you may try Deep Data Recovery - your reliable choice for partition data recovery. It fully scans the missing partition, finding all lost data in quick scan and deep scan modes.

• Free Download
• Windows 11/10/8/7, 100% Secure

With this tool, all Windows users can recover lost files from a missing partition in just 3 easy steps, making it a convenient and efficient solution for data recovery.

Note: To ensure a high chance of successful data recovery, install Qiling data recovery software on a different disk from the one where the files were lost. This approach helps prevent overwriting of the original data, increasing the likelihood of recovering the lost files.

Step 1.Launch Deep Data Recovery on your Windows computer, select the file types you want to recover, and click "Next" to proceed.

Step 2. Select the disk partition or storage location where you lost data and click "Scan".

Step 3. After starting the recovery software, it will begin scanning the disk to locate all lost and deleted files. Once the scan is complete, you can click "Filter" and then select "Type" to specify the types of lost files you're looking for.

Step 4.To restore lost Windows files, you can preview the scanned files by double-clicking on them. Once you've selected the target data, click the "Recover" button to save them to a safe spot in your PC or an external storage device.

#2. Back Up Important Files Before Resetting PC

To reset your PC, you'll lose all files, settings, and apps, except for the ones that came pre-installed with your computer. It's a good idea to back up your important data to an external storage device before proceeding.

 You can try to back up your computer data in two ways. There are two methods to back up your computer data.

1. Manually copying and backing up files to an external hard drive can be a time-consuming process, requiring individual files to be selected and transferred one by one, which can be tedious and prone to errors.

2. Back up all data to an external hard drive at one time using reliable file backup software, which is fast and efficient.

 To save time and energy, consider using file backup software like Qiling Backup, which quickly backs up data and takes up less space on your external hard drive.

Part 2. Fix "Unable to reset your PC. A required drive partition is missing" Error

Applies to: To resolve the "Unable to reset your PC. A required drive partition is missing" error in Windows 10/8/7, restart your computer and try resetting it again. If the issue persists, boot from a Windows installation media, go to the "Repair your computer" option, and select the Troubleshoot option.

Here are some solutions to help you get rid of the "Unable to reset PC" error based on the listed causes: If you're encountering this error due to a stuck Windows update, try restarting your PC in safe mode, then uninstall the update and install it again. If the issue is caused by a corrupted system file, you can try running the System File Checker (SFC) tool or the DISM tool to scan and replace corrupted files.

• #1. Run Bootrec Command to Rebuild BCD
• #2. Repair Corrupted MBR
• #3. Run SFC
• #4. Set System Partition as Active
• #5. Run CHKDSK
• #6. Perform System Restore

If you're experiencing issues with software or a game, try checking the system requirements to ensure your computer meets the minimum requirements. If you're trying to install software, check for corrupted or missing files, and if you're trying to run a game, verify it's properly installed and the game files aren't corrupted.

Method 1. Run Bootrec.exe

Bootrec.exe is a Windows Recovery Environment tool that can fix the Master Boot Record (MBR), Boot Sector, Boot Configuration (BCD), and boot.ini.

If the "Reset PC failed" issue is caused by a corrupt MBR or BCD, the solution is to use bootrec to correct the MBR or BCD record.

You can resolve the "Windows is loading files" loop by running bootrec.exe, which can be done by following these steps: Boot from a Windows installation media, open Command Prompt, navigate to the drive where Windows is installed, and run the command "bootrec /fixmbr" to fix the master boot record, then run "bootrec /fixboot" to fix the boot sector, and finally run "bootrec /scanos" to scan for Windows installations and select the one you want to boot into. Alternatively, you can try running the command "bootrec /rebuildbcd" to rebuild the BCD store, which can also resolve the issue. By running these commands, you can troubleshoot and resolve the "Windows is loading files" loop.

Step 1. Insert a Windows installation disk (DVD) or a bootable USB drive into your computer.

Step 2. To resolve the issue, restart your PC and access the boot menu by pressing the "F2/F12/Del" key, depending on your system's specifications. This will allow you to enter the BIOS settings and configure the boot order to prioritize the USB drive.

Step 3. Select the USB disk from the boot menu.

Wait for the computer to boot into the Windows Installation or Recovery DVD.

Step 4. Select "Install Windows" from the screen that appears and then select "Repair" your computer.

Step 5. From the repair menu, select "Troubleshoot" > "Advanced Options" > "Command Prompt".

Step 6. In the command prompt that opens, issue the following command one by one:

Method 2. Rebuild MBR

To fix the error where Windows won't allow you to reset the computer due to a corrupted MBR on a specific partition, use a powerful computer management tool to rebuild the corrupted MBR.

Here, reliable partition manager software - Qiling Partition Master with its "Rebuild MBR" feature can help.

Step 1. Create a WinPE bootable disk

• Launch Qiling Partition Master and click "Create bootable media" on the toolbar. You can then select to create the bootable disk on a USB drive or, if your computer has a CD/DVD drive, create it on a CD/DVD.

• Click "Proceed" to finish the process.

Step 2. Boot Qiling Partition Master Bootable USB

• Connect the bootable USB or CD/DVD to your PC.
• To enter the BIOS screen, press F2 or Del when restarting the computer. Once in, set the computer to boot from the "Removable Devices" or "CD-ROM Drive". This will allow Qiling Partition Master to run automatically.

Step 3. Rebuild MBR

• In the Tools and utilities page, choose "Fix boot" to continue.
• Click on the disk whose Master Boot Record (MBR) is damaged, then click "Proceed" to rebuild the MBR. This should allow your computer to boot normally again.

Method 3. Run SFC (System File Checker)

The error "Unable to Reset PC. A required drive partition is missing" may occur due to various reasons, including missing or corrupted system files. This error can be caused by a malfunctioning system file that is essential for the reset process, leading to the inability to complete the reset operation. In such cases, running a System File Checker (SFC) or a DISM scan may help identify and replace the corrupted system files, potentially resolving the issue.

The Windows System File Checker tool is able to repair missing or corrupted system files, providing a solution to this issue.

Here are the steps to run the tool:

Step 1. Press the Windows key + X keys, click on Search, type "cmd" in the search box, and press Enter to open the Command Prompt.

Step 2.  Right-click onCommand Prompt and select "Run as Administrator".

Step 3. To repair the missing or corrupted system files that are causing the "Unable to reset PC" error, type the command `sfc /scannow` and press Enter.

Method 4. Set System Partition as Active

You can only have one "Active" partition, which should be your system partition. If you mistakenly assign the active partition, your PC won't boot and you may get an error message saying "Unable to reset your PC. A required drive partition is missing".

To set your system partition as active, you'll need to boot your PC up from a Windows installation disk, enter Command Prompt, and use specific command lines to set the system partition as active. This process involves booting from the installation disk, navigating to the Command Prompt, and executing commands such as "diskpart" and "select disk 0" followed by "active" to assign the active flag to the system partition. Alternatively, you can use the built-in Windows tool, Disk Management, to achieve the same result.

Step 1. Insert the Windows installation DVD into your computer and restart it.

Step 2. Press the "F2/F12/Del" key to enter the BIOS boot menu.

Step 3. To start the Windows installation process, select the Windows installation USB or the DVD as the boot drive from the boot menu. This will allow the installation to begin and guide you through the setup process.

Step 4. Reboot PC and wait for the computer to boot into the Windows Installation or Recovery DVD.

Step 5. When "Install Windows" screen appears, select "Repair" your computer.

Step 6. From the repair menu, select "Troubleshoot" > "Advanced Options" > "Command Prompt".

Step 7. Type the following command lines and hit Enter each time to fix "Unable to Reset PC" error:

Method 5. Run CHKDSK

Disk errors can cause issues like "Unable to Reset PC. A required drive partition is missing," but running CHKDSK can help check and repair disk errors, such as file system errors or bad sectors.

Some users have reported that running CHKDSK to fix a corrupted file system can result in file loss. However, with Deep Data Recovery, you can recover your lost files and avoid the risk of data loss associated with CHKDSK.

Here are the steps:

Step 1. Repeat the process of booting your PC from the installation media by following Steps 1-6, which are detailed in either Method 1 or Method 4, to initiate the installation process.

Step 2. Choose to repair your computer.

Step 4. Click "Troubleshoot" > "Advanced Option" > Select "Command Prompt".

Step 5. Type the command line chkdsk c: /f and hit Enter.

If the command above doesn't work, type `chkdsk C: /f /x /r` and press Enter, replacing "C" with the drive letter of the volume you want to check.

Method 6. Perform System Restore

If the above methods failed to fix the error "Unable to Reset PC. A required drive partition is missing.", your last resort is to restore your system to an earlier point in time. This can often resolve issues caused by recent changes or software updates. To do this, you can use the System Restore feature in the Control Panel, or use a third-party backup and recovery software like Qiling Backup.

What would you like to know about using a Windows installation USB or DVD?

Step 1. Insert Windows installation USB and resart PC.

Step 2. To enter the BIOS, you'll typically need to press a specific key (such as F2, F12, or Del) as the computer boots up. The exact key may vary depending on your computer model, so you might need to check your computer's manual or manufacturer's website for guidance.

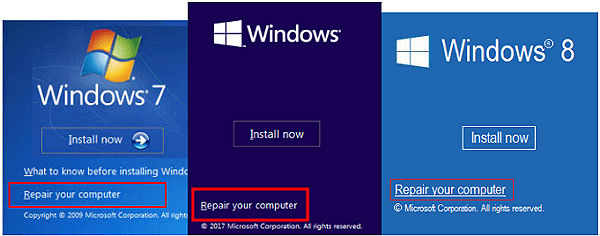

Step 3. On Windows Install window, select "Repair your computer".

Step 4. Select "Troubleshoot" > "Advanced Options" > "System Restore".

Step 5. Choose a previous working state (data) to restore to your computer.

Step 6. Wait until Windows Restores your system. Then restart your computer.

After performing the "Reset PC" operation, your computer will now be running with a previously healthy version of Windows, and everything should work normally.

Part 3. How to Reset Your PC After Fixing "Unable to Reset PC" Error

If you still want to reset your computer after fixing "Unable to reset your PC. A required partition is missing" error, follow the steps here one by one, you'll successfully reset the computer on your own:

Important: To avoid unnecessary data loss due to resetting your PC, it's recommended that you back up your files before performing a factory reset.

Here's how to reset your Laptop/PC in Windows 10/8/7 easily:

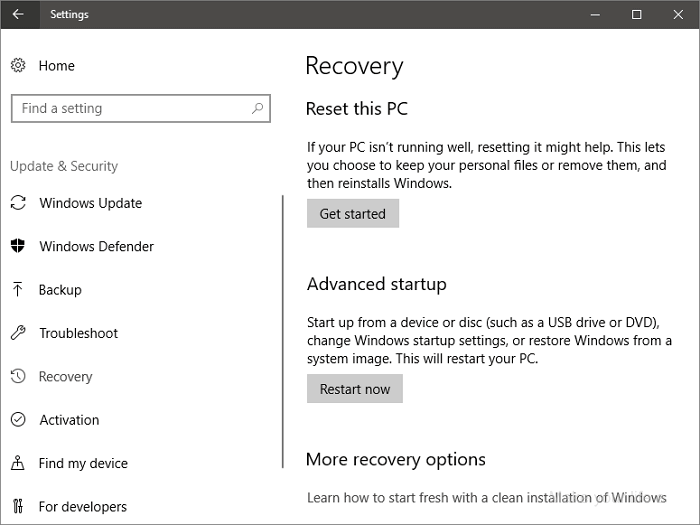

Step 1. To reset your Windows PC, go to the Start menu, click on the "Settings" icon, select "Update & security", then click on "Recovery", followed by "Reset this PC" and finally "Get started".

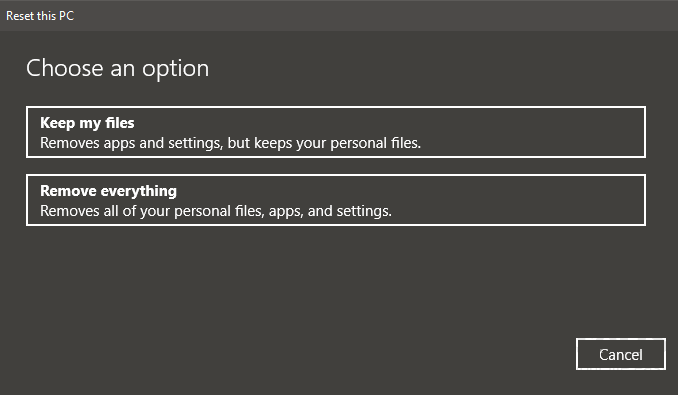

Step 2. Click either "Keep my files" or "Remove everything".

If you didn't back up any data, select "Keep my files" to keep your data files intact. This option will preserve your personal files, documents, and other data, but will remove any installed apps and settings.

This will reset all of your settings to their default values and remove all installed apps.

Step 3. If you chose "Remove everything" in the prior step, you should select "only the drive where Windows is installed" or "All drives" in this step.

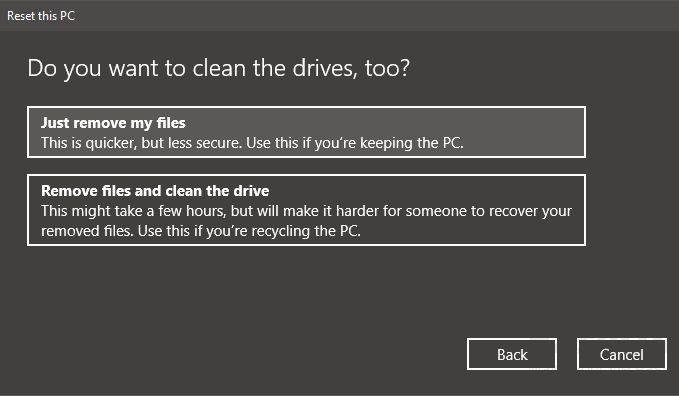

Step 4. If you're planning to sell the computer, choose "Remove files and clean the drive" so the next user can't recover your erased files.

If you'll continue using the computer, choose "Just remove my files."

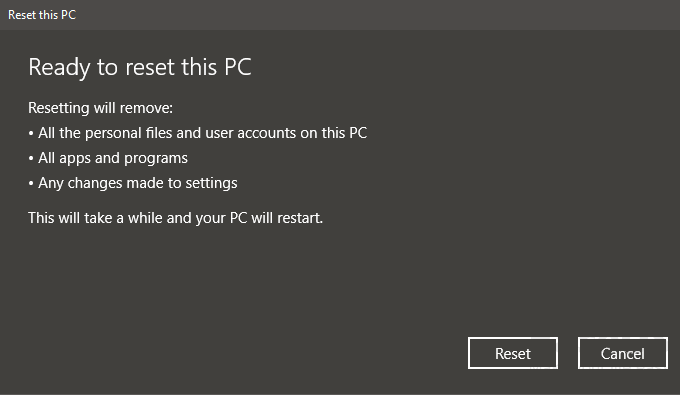

Step 5. Click "Reset" when prompted.

Windows will then restart and take a significant amount of time, typically 20 minutes or longer, to reset itself.

Wait patiently till the whole process completes and your computer successfully restarts. If the computer works fine, you can restore the backup data to a data drive to make use of them again.

The Bottom Line

If you encounter the error "Unable to Reset PC. A required drive partition is missing" during the resetting process, don't worry. You can resolve this issue by restoring lost data from the missing partition using Qiling data recovery software.

• Free Download
• Windows 11/10/8/7, 100% Secure

To fix the error, you can try the 6 practical methods shown above to successfully resolve the issue without losing any data. Once done, you can proceed with resetting the computer, making it work normally again. It's essential to back up your files with free backup software before the operation.
