How to Upgrade Lenovo IdeaPad Gaming 3 SSD (2024 Guideline)🥇

✋Post Quoted from Lenovo Forums :

"You're planning to add another SSD since your laptop's storage is running low. You have two PCIe NVMe slots, one is 2242 and the other is 2280. You're considering using an m.2 2242 SSD with SATA 3, but you're unsure if it's compatible since you read that this model doesn't support SATA SSDs. Is that correct?"

When storage is running low, one may want to install a second SSD, but the laptop only has two M.2 slots: 2280 and 2242. However, the Lenovo IdeaPad is ideal for productivity or general use.

The Lenovo IdeaPad Gaming 3 supports one of each 2280 and 2242 M.2 drives, making it possible to upgrade the SSD.

Is It Possible to Upgrade SSD for Lenovo IdeaPad Gaming 3

Upgrading the SSD on a Lenovo IdeaPad Gaming 3 can improve performance, and it has two M.2 slots allowing users to upgrade to newer or better SSDs if desired.

The 2280 M.2 SSD is a type of NVME SSD storage that uses an M key connector, while the 2242 SSD is a smaller version that looks similar but has a different size. If you're looking to upgrade your SSD for more storage or better performance, this content can help you find the answer.

🎯Key Takeaways: How to Upgrade Lenovo IdeaPad 3 Gaming SSD

1️⃣Preparation:

For your Lenovo IdeaPad, you can consider the Samsung 970 EVO, WD Black SN750, or the Crucial P1 as a suitable option for the M.2 2280 and 2242 slots. These models are designed to provide high performance and are compatible with your laptop's storage needs.
Choose a reliable disk cloning tool, like Qiling Disk Copy
Clone the old SSD to the new one using a cloning software, then shut down the computer and swap the drives, boot up the computer with the new drive and it should automatically detect and load the OS and all data from the old drive.
Some tools like screwdrivers and other components are used to assist the process.

2️⃣How-to guide:

To remove the back cover of your Lenovo laptop, start by undoing all the screws that hold it in place. This may involve removing screws from the bottom of the laptop, as well as any screws that are holding the keyboard or palm rest in place.
Unplug the battery of the laptop
Locate the SSD slot and remove the old SSD
Inset the new cloned SSD
Put other components back and screw down all screws.

3️⃣Afterward:

Format SSD to GPT or MBR
To restart the Lenovo laptop and set the new SSD as the boot drive in BIOS, follow these steps: 1) Shut down the laptop completely. 2) Press the power button to turn it back on, and immediately start pressing the Novo button (usually located on the side or top of the laptop) to enter the BIOS settings.

For detailed instructions, you can refer to the following text.

What to Prepare Before Upgrading Lenovo IdeaPad Gaming 3 SSD

Before upgrading the Lenovo IdeaPad Gaming 3 SSD, it's essential to have a checklist and to-do things in mind, especially since the user will have to replace an existing M.2. This includes taking care of the necessary steps to ensure a smooth upgrade process.

Watch videos regarding opening the laptop housing
To find the right SSD model for supported M.2 2280 and 2242 slots, look for SSDs with M.2 interface and a keying system that matches your motherboard's slot type.
To ensure your Windows system is properly backed up, consider using software like Acronis True Image, Qiling Backup, or Macrium Reflect. These programs can create full disk images, allowing you to restore your entire system in case of a disaster.
You can find or buy an opening pick, preferably made of rubber or plastic, to help with the process.
To migrate Windows to an SSD without reinstalling, you can use a cloning software like Acronis True Image or Qiling Disk Master, which can create an exact copy of your current hard drive and transfer it to the new SSD. Alternatively, you can use the built-in Windows feature called "Clone" in the Disk Management tool, which allows you to clone your current hard drive to the new SSD.
To safely open your laptop, gather the necessary tools, including a cleaning cloth, a brush, and a screwdriver set. This will allow you to properly access the internal components and perform any necessary cleaning or maintenance tasks.

🎨Before upgrading the SSD on a Lenovo IdeaPad, it's crucial to ensure the user goes through all of these steps to prevent any potential issues. A user must first back up their data, then disable Secure Boot and Fast Boot, and finally, create a bootable installation media. It's also important to note that the user should also check if their device is compatible with the new SSD.create an exact copy of the old SSD by using a reliable third-party tool like Qiling Disk Copy. This software will let users clone the old SSD to the new one Before installing an SSD, users should back up their data and ensure the operating system is up-to-date, as this will prevent any potential issues during the installation process. This step will also save them time in the long run, as it can clone or transfer the existing operating system and data to the new SSD, making the transition smoother and more efficient.transfer Windows to another drive without any loss.

Download it on your Lenovo IdeaPad 3 and perform an SSD cloning with the following steps before the SSD upgrade.

Free Download
Windows 11/10/8.1/8/7, 100% Secure

To clone your HDD to SSD, start by connecting the SSD to your computer and making sure it's recognized by your system. Next, download and install a cloning software such as Acronis True Image, Qiling Disk Master, or Macrium Reflect, which will guide you through the process.

Step 1: To clone a hard drive in Disk Mode, select the HDD that you want to clone.

select the hard drive that you want to clone

Step 2: Select the SSD as your destination.

Step 3: Edit the disk layout and then click "Proceed" to continue.

You are advised to select the "Check the option if the target is SSD" box when the destination is an SSD.

A warning message informs you that the data on the SSD will be erased. If you don't have important data on the destination disk, click "OK" to proceed.

Step 4: Wait for the process to complete.

click proceed to start the cloning process

🎁You may be interested: best SSD cloning software

Video Tutorial: How to Clone A Hard Drive (Set clone HDD to SSD as an example)

A video demonstrating how to upgrade a hard disk using Qiling Disk Copy may be a more effective way to convey the process than written instructions, as it visually shows the steps involved.

The post provides a helpful solution to the Lenovo IdeaPad Gaming 3 SSD upgrade problem. To solve this issue, users can follow the steps outlined in the post to upgrade their SSD, which may involve removing the existing one, identifying the correct SSD model, and installing the new one. By sharing this post on Twitter and other social platforms, users can help others who may be experiencing the same problem.

Replace New SSD on Lenovo IdeaPad Gaming 3

To open and replace the new SSD on the Lenovo IdeaPad Gaming 3, start by removing the power cord and battery. Then, remove the bottom panel to access the SSD.

 Tip: Replacing the new SSD on Lenovo IdeaPad is a relatively simple process, but requires care when removing the laptop housing, which is secured by screws and should be pried open with caution using an opening pick.

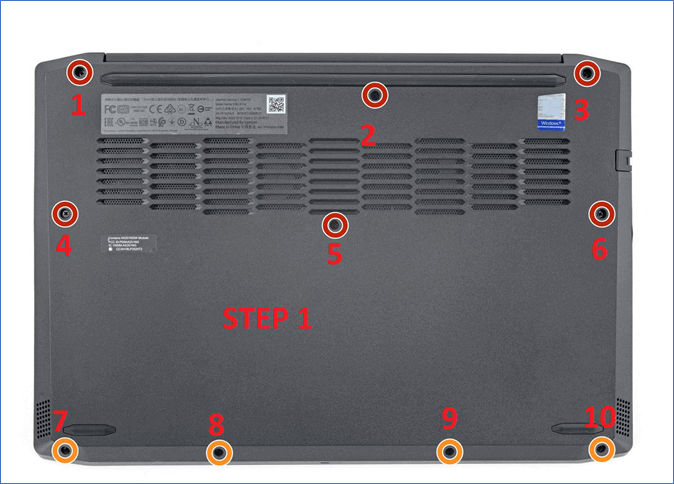

Step 1: Remove the screws from the back housing of the laptop

housing of the laptop

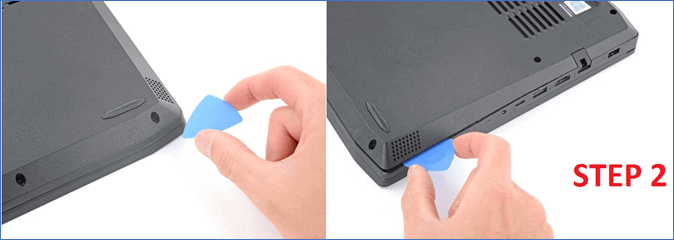

Step 2: Now pry the casing open with the opening pick on both sides.

opening pick on both sides

Step 3: Remove the casing slowly.

Step 4: Now find the battery plug.

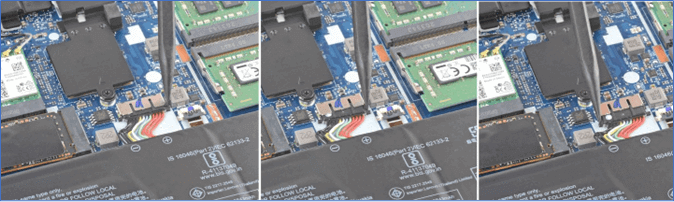

Step 5: Unplug the device gently using a pick or screwdriver by slowly prying it out on both sides.

Unplug it gently using a pick

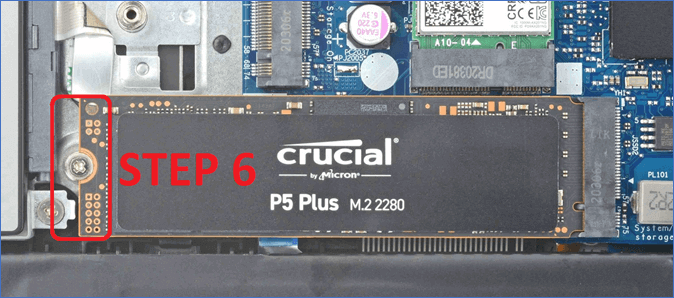

Step 6: Locate the M.2 2280 slot and remove the 3.3 mm screw that secures it.

M.2 2280 and remove the 3.3 mm screw

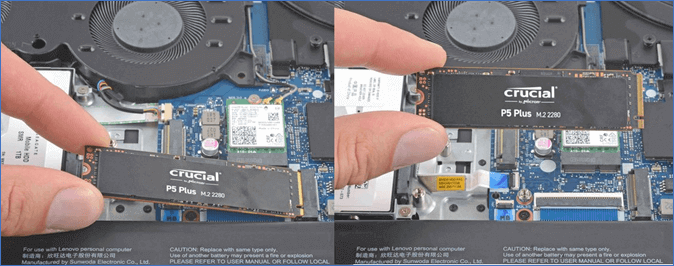

Step 7: Now remove the SSD.

ssd

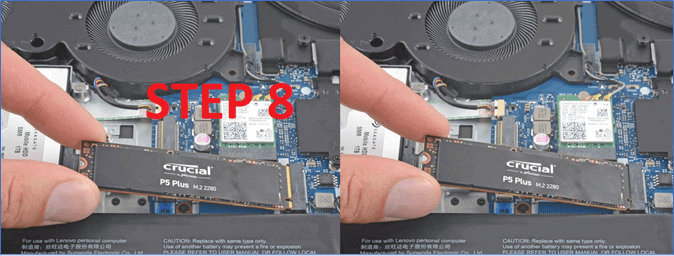

Step 8: Plug the new SSD back in.

SSD back in.

Step 9: Secure the SSD by screwing it back in.

Step 10: Put the laptop housing back and screw down all ten screws.

To replace the old SSD with a new one in a Lenovo IdeaPad Gaming 3, ensure the new SSD is a 3rd or 4th Gen model, allowing for optimal speed utilization. Simply remove the old SSD and insert the new one, taking care to secure it properly. This ensures seamless integration and maximum performance from the new SSD.

Users should be careful when replacing an SSD, as the M.2 connectors and slots are delicate. They should handle the components with care when plugging out the old SSD and plugging in the new one, being as gentle as possible to avoid damaging the connectors or slots.

To clone Lenovo HDD to SSD without reinstalling OS and applications, you can use a cloning software such as Acronis True Image or Qiling Disk Master. First, connect the SSD to your Lenovo laptop and ensure it's recognized by the system. Then, launch the cloning software, select the source HDD and target SSD, and choose the cloning method (e.

To upgrade a Lenovo computer's hard disk drive (HDD) to a solid-state drive (SSD), you can clone the Lenovo HDD to the SSD directly using a tool like Qiling Disk Copy, which is specifically good at cloning Lenovo laptop drives from HDD to SSD with secure boot enabled.

Pro Tips: What to Do After Upgrading SSD

After upgrading to a new SSD, it's essential to configure it properly. Start by entering your BIOS settings to ensure the system boots from the SSD. Additionally, format the SSD using the correct partition table, either GPT or MBR, to avoid any compatibility issues. This will help you get the most out of your new SSD and ensure a smooth computing experience.

Here are a few tips to remember and things to do after upgrading the SSD: Many users today would suggest using GPT as it's the latest and most well-supported type of partition table.

Set it as a boot device for Windows installation;
Use it as GPT to ensure optimal use of its speed;
Restore the data created from the earlier SSD;
To set a drive as the primary drive in BIOS to boot from it, follow these steps:
And monitor the temperature using HWMonitor or propriety software.

The SSD should be set as the primary boot device in the UEFI settings to ensure it's being utilized fully and works as a boot drive rather than a common drive on the laptop.

Sum Up

Upgrading the SSD on Lenovo IdeaPad Gaming 3 requires ensuring that the user purchases an M.2 2280 SSD, which matches the M.2 slot keys on the laptop. This ensures a proper fit and successful upgrade.

It's crucial that users back up and restore their important data and configurations using Qiling Disk Copy, allowing them to create a clone of their Windows if they don't want to reinstall everything from scratch.

Free Download
Windows 11/10/8.1/8/7, 100% Secure

Upgrading the Lenovo IdeaPad Gaming 3's SSD can be a bit tricky, but with the right tools and a little patience, it's definitely doable. Start by shutting down your laptop and unplugging the power cord. Then, remove the bottom panel to access the SSD.

FAQs about Lenovo IdeaPad Gaming 3 SSD Upgrade

Here are some additional queries that people ask and they might assist users further:

1. Can I add SSD to Lenovo IdeaPad Gaming 3?

The Lenovo IdeaPad Gaming 3 has limited storage options, with only two M.2 slots available, each supporting a 2280 or 2242 drive. If these slots are used, adding a third SSD is not possible, as the laptop does not support SATA III drives.

2. Does Lenovo IdeaPad 3 have M2 SSD slot?

The Lenovo IdeaPad 3 has two M.2 slots (one 2280 and one 2242) that can each house two storage devices, but it lacks SATA III ports, making it impossible to add a 2.5" SATA SSD or HDD.

3. Is the Lenovo IdeaPad 3 gaming upgradeable?

The Lenovo IdeaPad 3 allows users to upgrade its RAM and SSD, with two slots for each, enabling them to install newer or better versions if desired.

4. What type of SSD is in Lenovo IdeaPad Gaming 3?

The Lenovo IdeaPad Gaming 3 has two M.2 SSD slots, one being a 2280 "M" Key SSD, typically the larger one, and the other a 2242 B+M Key, usually the shorter one.
