How to Access HP Boot Menu with HP Boot Menu Key [Full Guide]


All computer users know how to boot up their computers, however, very few of them know the boot menu and how to access it on their computers. Here, we'll take the HP boot menu and HP boot menu keyas an example to show everything that you need to know about it.

Workable Solutions Step-by-step Troubleshooting
What Is HP Boot Menu Boot Menu is an approach that appears before you enter the OS by pressing the boot menu keys...Full steps
How to Access HP Boot Menu Enter the boot menu on an HP laptop with the HP laptop boot menu key to change its boot order...Full steps
What's in HP Boot Menu HP Laptop Boot Menu: F1 System Information; F2 System Diagnostics; F9 Boot Device Options...Full steps
How to Make Use of HP Boot Menu Access HP boot menu with boot keys to use each option on the HP boot menu, e.g. F9 Boot Device Options...Full steps
Data Recovery from HP Boot Menu Use bootable data recovery software to create a bootable media and boot HP to restore files...Full steps

Are you looking for a brief guide to tell you how to access the HP boot menu and how to make use of the HP boot menu key? Stay here. On this page, we'll show you how to access your HP laptop or desktop boot menu and use it to configure your computer successfully. It applies to all levels of HP computer or laptop users. Let's get started.

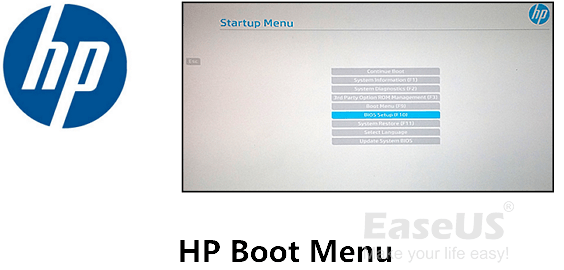

image of HP boot menu

What Is HP Boot Menu Windows 10

Normally, when you press the power button to boot up a computer, the boot menu will not show up. Boot Menu is an approach that appears before you enter the operating system by pressing the boot menu keys.

So why does Boot Menu matter? Here is what you can do with the boot menu:

HP Boot Menu Key Windows 10

As for HP users, to enter and access the HP boot menu and make changes to their computers, they have to press the HP boot menu keys.

So what is the HP Boot Menu key? Let's check out:

Computer Type HP Boot Menu Key HP BIOS Keys
HP Desktop Computer/Laptop Esc/F9 Esc/F10/F1

How to Access HP Boot Menu

So how do I get to the boot menu on my HP laptop? Or how to enter the boot menu on an HP laptop to change its boot order?

Here are the basic steps that you can follow to enter the boot menu on your HP computers:

Step 1. Turn on or restart the HP computer.

Step 2. Press "Esc" or "F9" immediately to enter the Boot Menu.

Step 3. Wait for the HP boot menu to show up.

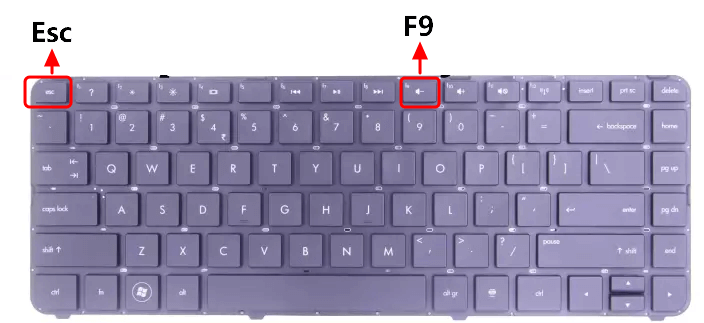

HP Boot Menu Key

What's in HP Boot Menu

So what is in the HP boot menu? If you followed the step-by-step guide above, you'll be able to see the following content in your HP Boot Menu (also known as HP Startup Menu):

HP Laptop Boot Menu:

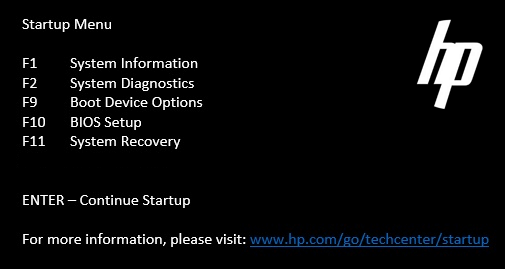

HP laptop boot menu

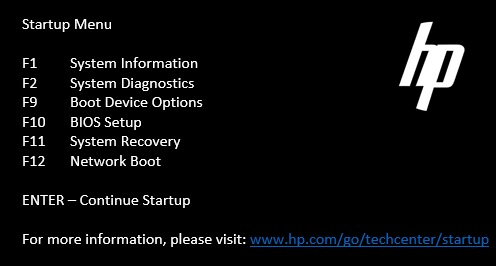

HP Desktop Boot Menu:

HP laptop boot menu

So what does each option means and how to make use of these Boot Menu keys? Find out the answers in the next part.

When and How to Make Use of HP Boot Menu

Here, in this part, you'll learn when do you need to use each option on the HP boot menu and how to make use of each boot menu key respectively.

F1 System Information

The System Information key can help you load the system's basic details, product details, such as manufacturer, processor, serial number, and BIOS data, etc.

How to Use:

When you need to check the computer and system information, here are the steps:

Step 1.Restart PC and press "Esc" to enter Boot Menu.

Step 2. Press "F1" wait for the computer to load the system information.

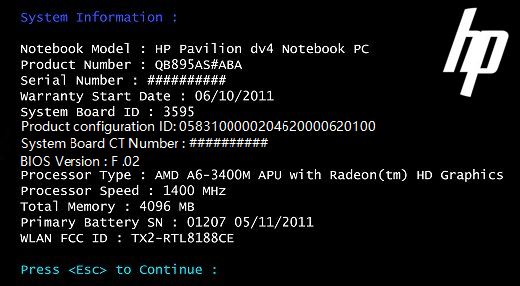

Check System Information in HP boot menu

F2 System Diagnostics

The System Diagnostics key is designed for checking and testing hardware failures on HP computers.

How to Use:

Step 1.  Restart PC and Press "Esc" and enter Boot Menu.

Step 2. Press F2 and wait for the computer to check and load the diagnostic information.

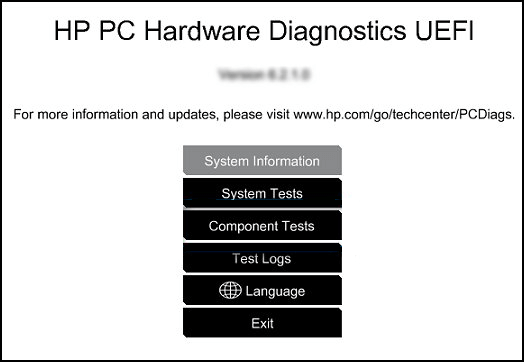

Run System Diagnostics in HP Boot Menu

Step 3. To run further tests, you can use the up and down arrow keys to switch and select the items.

For example, the component tests.

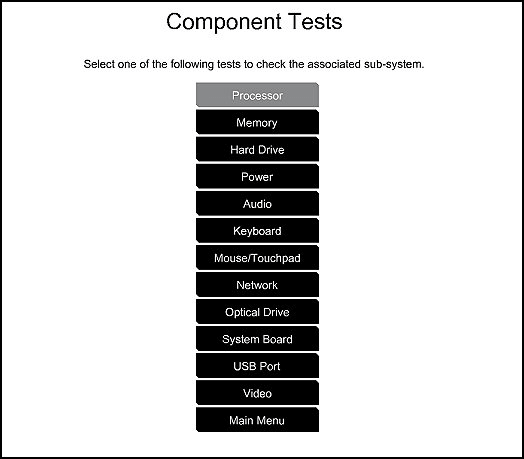

Run test via system diagnostics in HP Boot Menu

F9 Boot Device Options

The Boot Device Options, F9, is known for BIOS boot resources for UEFI including Windows Boot Manager, Network Card. And it also includes Legacy Boot Source like DVD, hard drive, CD, and USB flash drive.

When you need to switch or change the PC boot order in BIOS, you can use this option.

How to Use:

#1. Change HP BIOS Boot Order

Step 1.  Restart PC and Press "Esc" and enter Boot Menu.

Step 2. Press F9 to enter BIOS Boot Options.

Step 3. Use the arrow keys to adjust or change the boot drive on your HP laptop.

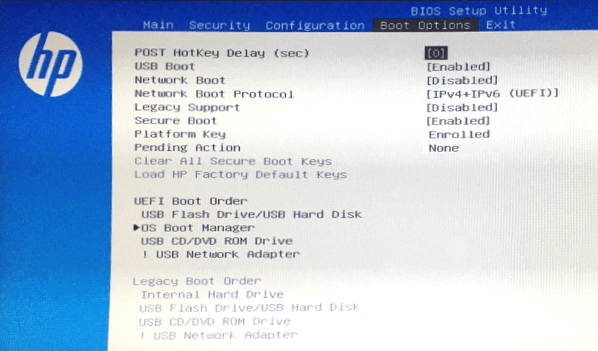

Change boot order in HP boot menu

Step 4. Save the changes and restart the HP computer.

#2. Boot HP from USB

Step 1.  Connect a Windows recovery USB drive to your PC.

Step 2. Restart PC and Press "Esc" and enter Boot Menu.

Step 3. Press F9 to enter BIOS Boot Options.

Step 4. Use the arrow key to switch the computer boot drive to the USB drive.

Step 5. Save the changes and restart the computer.

F10 BIOS Setup

F10, the BIOS Setup option, is a quick access for you to switch UEFI boot mode into BIOS legacy mode.

F11 System Recovery

It's an option that allows you to reset your HP computers, for example, reset the computer to its factory settings.

How to Use:

 #1. Factory Reset HP from Startup:

When you are unable to factory reset Windows in settings, you can use the Boot Menu key to give it a try.

Note that this operation will fully erase all files on your disk. So before you start, make sure that you have fully backed up the computer data.

Step 1. Remove or unplug all unnecessary external devices and restart the HP computer.

Step 2. Press the Esc key to enter Boot Menu.

Step 3. Press F11 and select "Troubleshoot" to enter the Recovery Manager.

Step 4. Select "Factory Reset" and follow the onscreen guide to finishing the process.

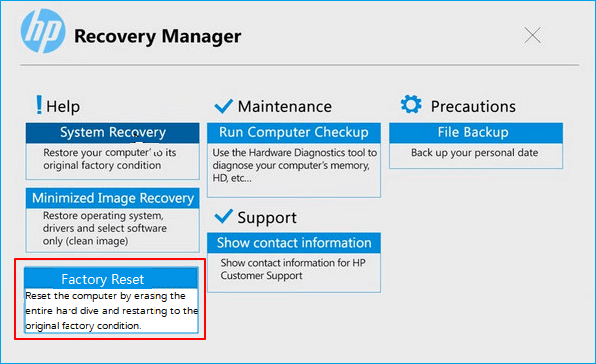

Factory Reset HP from HP startup menu

You May Also Like: How to Recover Files after Factory Reset Laptop?

#2. Perform System Recovery on HP

When you are not satisfied with the current OS or you want to revert your Windows OS to a previous system state with the created system image, you can try this out.

Note that this operation may also cause some file loss on your system C drive. So please make sure that you've backed up all important system C drive files.

Step 1. Remove or unplug all unnecessary external devices and restart the HP computer.

Step 2. Press the Esc key to enter Boot Menu.

Step 3. Press F11, click "Troubleshoot" to enter the Recovery Manager.

Step 4. Select "System Recovery" and follow to select a previous system image.

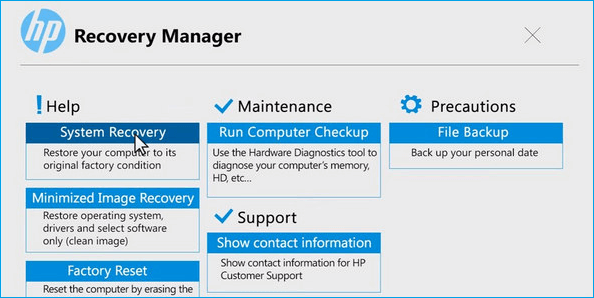

Perform system recovery from HP Boot Menu

Step 5.Follow the onscreen guide to finish the process.

If you feel regretful, check this out: How to Undo System Restore

In a word, stop using your computer immediately once you lost files using the HP boot menu key on Windows 10 for restoring or resetting the OS. And turn to reliable data recovery software like Deep Data Recovery for help.for help.

You can also use the manual repair and repair services of Qiling to perform system repair and recovery. The professional technical team can help you solve any system startup errors, including system failure, system blue screen, system black screen, and so on.

Consult with Qiling data recovery experts for one-on-one manual recovery service. We could offer the following services after FREE diagnosis:

  • Fix Windows boot issues, including BSOD
  • Fix Windows error and configure Windows environment
  • Restore the system when it fails to boot
  • Optimize Windows computer to make it run quickly

F12 Network Boot

If you have a network drive that supports you to access and boot your computer, you can try this option. To boot an HP computer from a network drive, it's quick and efficient.

How to Use:

Step 1. Restart HP computer.

Step 2. Press the Esc key to enter Boot Menu.

Step 3. Press F12 to enter the Network Boot Menu.

Step 4. Select a network drive to boot your computer from.

Step 5. Save the changes and restart the PC.

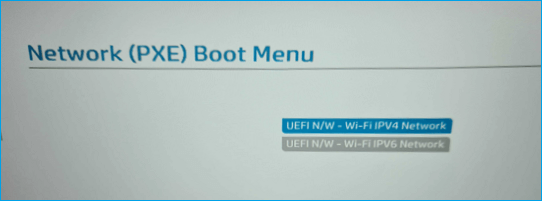

Run PC from Network drive via HP boot menu

Data Recovery from HP Boot Menu

Sometimes, when the HP computer OS crashes or becomes unbootable, you may need help to perform data recovery from the HP boot menu.

If your computer is currently unbootable or dead, you can turn to bootable data recovery software for help. Here, Deep Data Recovery with Bootable Mediable Media can help. It allows you to create a bootable media and boot HP from its boot menu to fully scan and restore all valuable hard disk files.

You can use this powerful data recovery software to recover data from a dead HP laptop hard drive.

Step 1. Create a bootable disk

Prepare an empty USB. If you have important data on it, copy the data to another device. When you create a bootable disk, the data on the USB will be erased. Deep Data Recovery WinPE Edition will help you create a bootable disk.ble disk.

Connect the USB drive to PC, launch Deep Data Recovery WinPE Edition. Select the USB drive and click "Create" to create a bootable disk.ble disk.

Step 2. Boot from the bootable USB

Connect the bootable disk to PC that won't boot and change your computer boot sequence in BIOS. For most users, it works well when they restart their computer and press F2 at the same time to enter BIOS.

Set to boot the PC from "Removable Devices" (bootable USB disk) or "CD-ROM Drive" (bootable CD/DVD) beyond Hard Drive. Press "F10" to save and exit.

Step 3. Recover data from a hard drive that won't boot

When you boot from the USB, you can run Deep Data Recovery from the WinPE bootable disk. Select the drive you want to scan to find all your lost files.

Select file types that you want to recover

Click "Scan" to start the scanning process.

select a location and scan lost music, voice recording

Recover data from the computer or laptop. After the scan completed, you can preview all recoverable files, select the targeted files, and click the "Recover" button to restore your files. You'd better save all of the recovered data to another place to avoid data overwriting.

Preview found audio files

Conclusion: HP Boot Menu Is Complex, Use It Carefully

On this page, we introduced what the HP boot menu is and how to access the HP boot menu effectively. According to the HP boot menu keys, you can check device information, run a hardware diagnostic, change boot order, run HP from USB, and even run HP from a Network drive.

Note that the HP boot menu is complex and make sure that you'll use it carefully. Also, when you can't access files on an unbootable HP computer, Qiling bootable data recovery software can help.
