How to Perform HP Omen SSD Upgrade [Efficient Ways🔥]
HP Omen is a series of gaming laptops that offers powerful performance for smooth and quiet gaming, but may have limited internal storage capacity due to large game files.
If you want to extend your storage or upgrade your HP Omen laptop's performance for gaming, you're in the right place. Many HP Omen models come with user-upgradable SSD slots, allowing you to replace or add an SSD to enhance storage capacity or improve performance without losing any data. Qiling will guide you through the detailed procedure to perform this upgrade.
| ⏱️Duration | About half an hour |
| 💻Supported PC | The HP Omen 30L, 13/15/16/17, and other HP Omen laptops are designed with performance and style in mind. These laptops are equipped with powerful processors, high-performance graphics, and ample storage to handle demanding tasks such as gaming, video editing, and software development. |
| ⛏️Required Software | Clone tool - Qiling Disk Master |
| 💡Methods |
To upgrade the HP Omen SSD, replace the existing SSD with a larger one. This will increase the storage capacity of the device and potentially improve performance. |
Many users have some questions about HP SSD upgrades. Here is a typical case study from the forum:
There is no problem to worry about. The text is actually an instruction on how to perform an HP Omen SSD upgrade, which is a process of upgrading the solid-state drive in an HP Omen computer. The text is encouraging the reader to continue reading to learn how to do it.
How to Perform HP Omen SSD Upgrade
Upgrading the SSD in your HP Omen laptop may be necessary in two scenarios. First, if your current SSD is running low on storage space, upgrading to a larger capacity SSD can provide more room for your files, programs, and operating system. Second, if your current SSD is outdated or malfunctioning, upgrading to a newer, faster SSD can improve your laptop's performance and overall user experience. Regardless of the reason, a comprehensive guide with step-by-step instructions will walk you through the HP Omen SSD upgrade process, and downloading Qiling Disk Master can help prepare you for the upgrade.
- Reason to Choose It:
- Support for initializing and formatting SSD.
- Users can upgrade to a Solid-State Drive (SSD) by cloning their existing hard drive without losing any data. This process involves creating an exact replica of the original drive on the new SSD, ensuring that all files, programs, and settings are preserved.
- The software allows users to easily modify the boot sequence with just one click after cloning, making it a convenient and user-friendly option for those who need to make changes to their boot order.
Situation 1. Replace the HP Omen SSD with A Larger One
To upgrade the SSD on your HP Omen laptop, you'll need to purchase a new SSD with a larger storage capacity, disconnect the power and any other cables from the old SSD, remove the old SSD from the laptop, install the new SSD in its place, and reconnect any cables that were previously disconnected. This upgrade should provide a noticeable improvement in speed and storage capacity.
- Stage 1. Add the New SSD on HP Omen
- Stage 2. Migrate OS to New SSD for Upgrade
- Stage 3. Move the Original SSD and Boot from the New
You can also click the social buttons and share your ideas with others in need.
Stage 1. Add the New SSD on HP Omen
Upgrading the SSD in your HP Omen laptop requires consideration of performance, reliability, and compatibility. To ensure a smooth upgrade, check the laptop's specifications to determine the compatible SSD size and type, such as the Gen 4.0 NVMe M.2 SSD slot found in the HP OMEN 16-B1009NL. Based on your demands and budget, you can choose from various SSD options, with three reliable upgrade recommendations available.
- Samsung 4-Gen 1 TB (speed up to 7,000 MB/s)
- Samsung 4-Gen 2 TB (speed up to 7,000 MB/s)
- Crucial 4-Gen 1 TB
To connect a new SSD to your laptop, externally connect the SSD to the laptop using a data cable or adapter, following the manufacturer's instructions for the specific type of connection. This typically involves plugging the SSD into the laptop's USB port or other external connection point, and then using software or a utility to initialize and configure the drive. The specific steps and tools required may vary depending on the type of SSD and laptop being used, but the basic process is generally the same.
Step 1. Turn off the computer and unplug all power cords.
Step 2. To access the internal components of your HP Omen computer, you'll need to remove the cover. This process may vary slightly depending on the specific model you have, but here's a general guide for the HP Omen 30L, HP Omen 15, and HP Omen 17.
Step 3. To install the new SSD, locate the second SSD slot on the motherboard and connect the original SSD using the adapter. This will allow the original SSD to be used as a secondary drive, freeing up space on the original drive and providing additional storage capacity.
To migrate the operating system and data from the old drive, you'll need to follow these steps:
Stage 2. Migrate OS to New SSD for Upgrade
Migrating the OS from the old drive to the new SSD allows for seamless operations, and Qiling Disk Master facilitates this process with a one-click solution and advanced "clone disk" functionality, making it easy for users to transfer data from one disk to another.
To migrate your OS to the new SSD upgrade using Qiling Disk Master, follow these steps. First, create a bootable Qiling Disk Master USB drive.
Steps to migrate OS to HDD/SSD:
- Run Qiling Disk Master, and select "Clone" from Tools tab page.
- Check "Migrate OS" and click "Next".
- Select the destination disk, whether it's an SSD or HDD, and click "Next" to proceed with the process.
- Warning: the data and partitions on the target disk will be deleted, so make sure to back up important data before proceeding.
- Then click "Yes".
- Preview the layout of your target disk. Then click "Proceed" to start migrating your OS to a new disk.
Note: When migrating your operating system to a new SSD or HDD, be aware that if the target disk doesn't have enough unallocated space, the process will erase all existing partitions and data on it. Therefore, it's crucial to back up any important data from the target disk to an external hard drive before proceeding.
Other features of using Qiling Disk Master:
Stage 3. Move the Original SSD and Boot from the New
Before moving the original SSD, make sure the data is migrated successfully. If yes, proceed to move the original drive and boot the laptop from the new one.
Step 1: Unplug all cables, remove the battery, and any other external devices from the laptop, then turn it off completely.

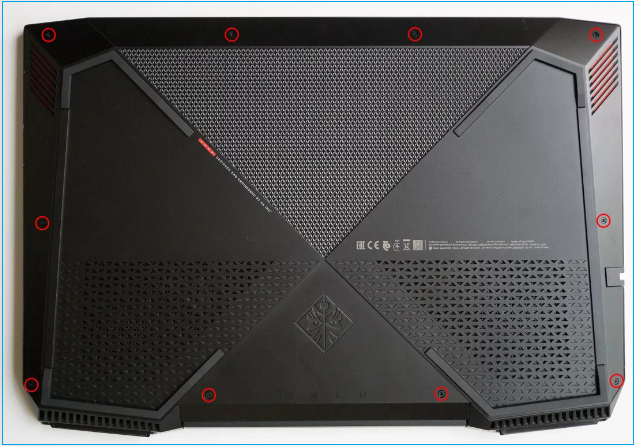

Step 2: Remove the base panel and the battery, then use a Phillips-head screwdriver to take out all the screws.
Step 3: To completely drain the battery, hold the power button for a few seconds. This will allow any remaining charge to be released from the system.
Step 4: Remove the SSD slot from the system board by unscrewing it. Be gentle to avoid damaging the board.
Step 5: To remove the drive, you should gently pull it from the edges and then take it out.
Step 6: Put the drive in a safe place.

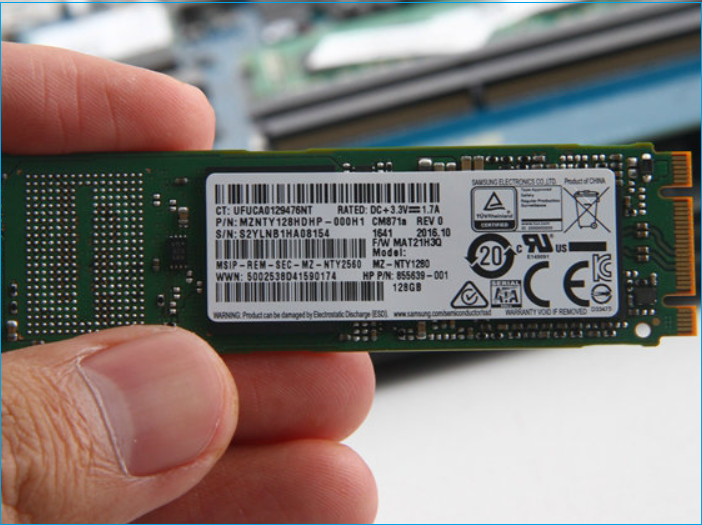

Step 7: Insert the new SSD in the slot and secure it with screws onto the system board.
Step 8: Place the battery and screw the base panel.
These are the solutions to perform the HP Omen SSD upgrade. If you find this guide helpful, consider sharing it with others by clicking the buttons.
Here are the steps to change the boot order from BIOS settings and make HP boot from the new SSD:
Step 1: To access the BIOS settings, turn on the computer and immediately press the "F9" key to open the BIOS configuration.
Step 2: Navigate to the "Boot" or "Boot Order" option using the arrow keys.
Step 3: To move the new SSD to the top of the list, select it using the "+" key, then use the "-" key to move it to the top position. This will prioritize the new SSD for installation.
Step 4: Choose the "Save and Exit" option.
Further reading about changing the boot order:
Situation 2. Add a Second SSD to Perform HP Omen SSD Upgrade
Most HP Omen laptops have two NVME M.2 SSD slots, allowing for easy addition of a second SSD without replacing the current one, thus increasing storage capacity with a simple fix.
If your main goal with an HP Omen SSD upgrade is to add more storage space, you can insert the second SSD into the available slot.
Pro tip*
To improve your HP laptop's performance and solve the issue of it running slow, you can either upgrade to a new SSD or replace the old one with a new one and put the old one in the second slot. This will give you a boost in performance and address the problem.
Here are the steps to install the second SSD:
Step 1: Turn off the laptop and remove the base panel.
Step 2: Remove the battery and find an empty SSD slot on the motherboard. Then, insert the SSD into the empty slot and secure it with screws.
Step 3: Insert the drive into the computer's USB port, and hold it firmly in place until it clicks. Make sure the drive is not loose or wobbly. If the drive is not recognized, try plugging it into a different USB port.
Step 4: Screw the drive, then place the battery and back panel.
If you want to know the detailed guide to install a second hard drive on PC, click the link:

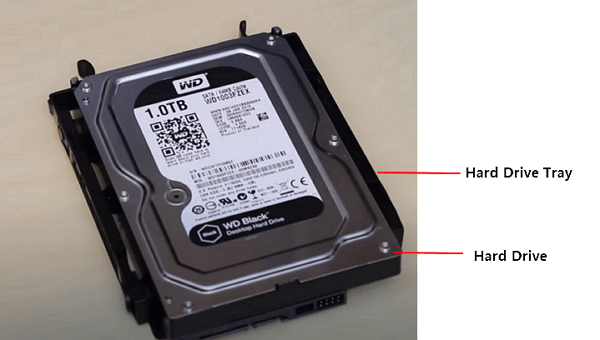

Installing a second hard drive is a relatively straightforward process that can provide additional storage space for your computer. To do this, you will need to purchase a second hard drive, which can be a traditional spinning disk or a solid-state drive (SSD). Once you have the new drive, you will need to physically install it into your computer, which typically involves opening the case and connecting the drive to the motherboard using a SATA cable.
To add a new hard drive in Windows 10, start by physically installing the new drive into your PC. Then, go to the Disk Management tool in Windows, which can be accessed by right-clicking on the Start menu and selecting "Disk Management." In the Disk Management tool, you can see the new drive listed as "Unallocated.
Conclusion
This article provides a detailed guide on upgrading the SSD in an HP Omen laptop, covering scenarios where the existing SSD is replaced or a second SSD is added. The process is broken down into step-by-step instructions, making it easy to follow, and a suggested program, Qiling Disk Master, is recommended for copying data from one drive to another, offering a user-friendly and reliable upgrade process.
FAQs About HP Omen SSD Upgrade
This FAQ section provides answers to frequently asked questions about HP Omen SSD upgrade. If you have further questions, please check this section for answers.
1. How many SSD slots does HP Omen have?
Most HP Omen laptops have two NVME M.2 SSD slots, allowing you to add a second SSD without removing the first one.
2. What SSD is compatible with HP Omen?
HP Omen laptops typically support NVME M.2 SSDs, so when shopping for an SSD, look for one that matches your laptop's specific model and has the correct M.2 and NVME integration.
3. How to perform HP M.2 SSD upgrade?
Here is a brief step guide to performing HP M.2 SSD upgrade:
Step 1: Turn off the laptop and remove the base panel.
Note* Use a Phillips-head screwdriver.
Step 2: Find the M.2 SSD and unscrew it.
Step 3: Hold the SSD from the corner and unplug it.
Step 4: Plug in the new SSD and screw it.
